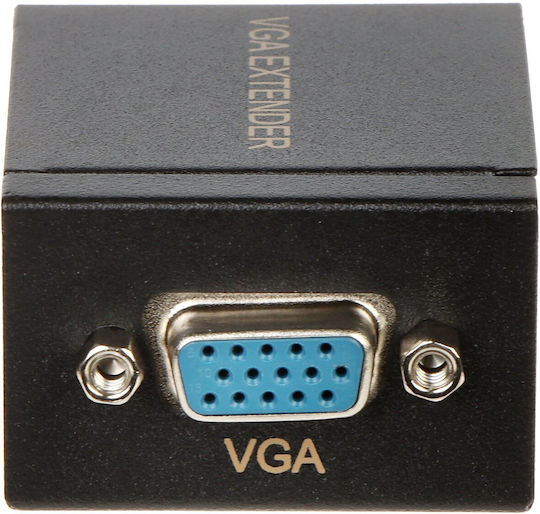

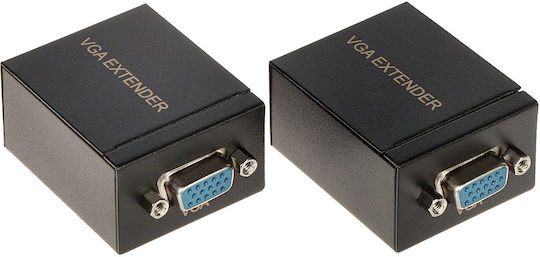

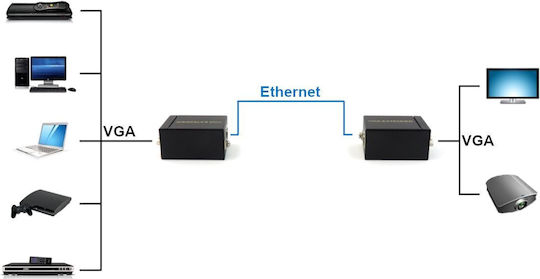

The VGA-EX-60 signal transmission system transmits a VGA signal over distances of up to 60 m via shielded FTP cable. It is passive and does not require a power supply.

• Device type: VGA extender
• Maximum video range: 60 m

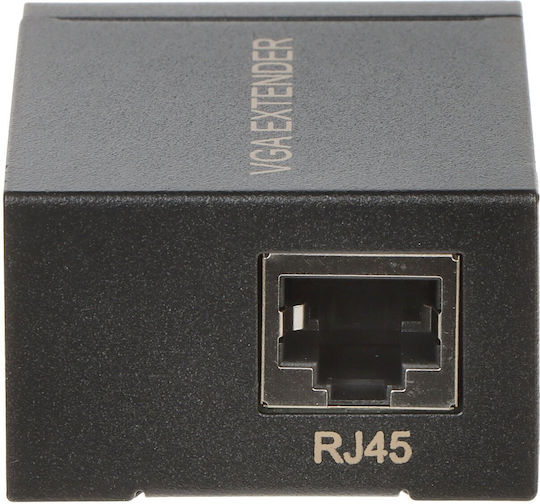

• Connections: 1 VGA socket, 1 shielded RJ-45 socket
• Resolution: 1600 x 1200 px UXGA, 1280 x 1024 px SXGA, 1280 x 768 px WXGA, 1024 x 768 px XGA, 800 x 600 px SVGA, 640 x 480 px VGA
• Balanced connection impedance: 100 Ω
• Operating temperature: 0 °C to 40 °C
• Permissible ambient relative humidity: up to 85 %
• Weight: 0.07 kg
• Dimensions: 57 x 42 x 27 mm
