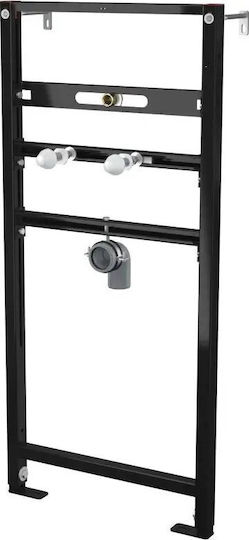

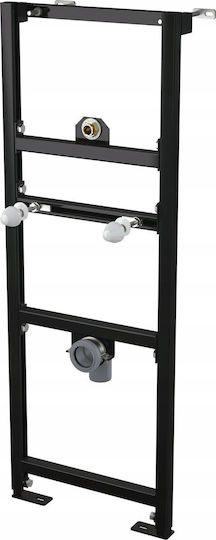

Alcaplast urinal installation frame, product code A107/1120, suitable for installation in front of a load-bearing wall or in drywall constructions. The frame is intended for the installation of a flush valve and features adjustable legs. Its construction from metal with powder coating has a strength test of 150 kg.

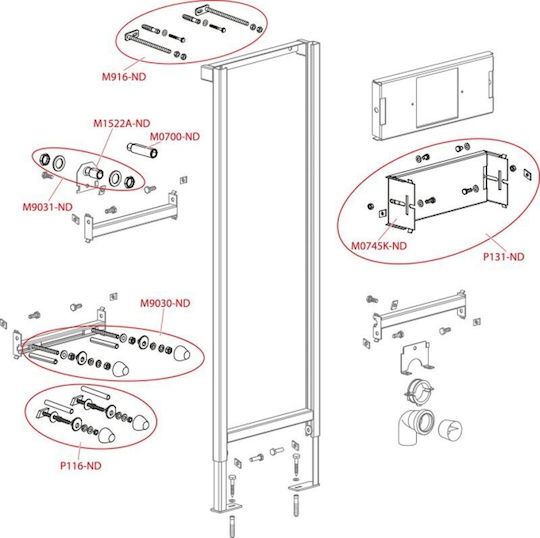

• Urinal mounting elements: M10 screw – 2 pcs.
• Mounting set: screw Ø8×60 – 4 pcs., dowel Ø12 – 4 pcs.
• Mounting caps
• 50 drainage angle with gasket
• Connector G1/2'–G1/2'
• Self-supporting frame made from channel

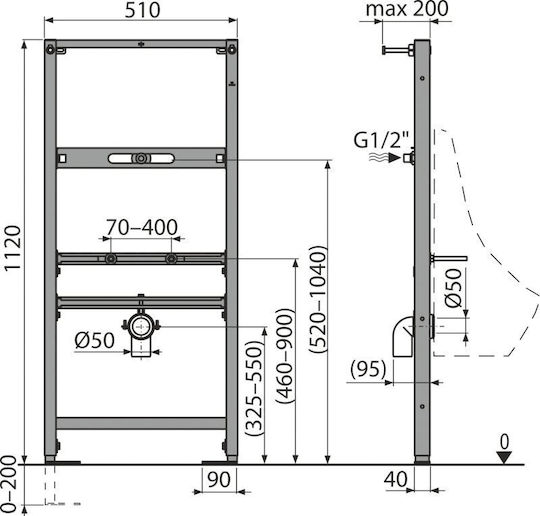

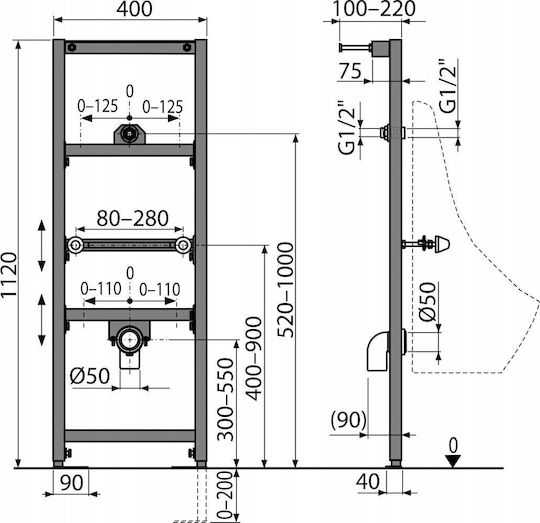

Technical specifications:

• Manufacturer: Alcaplast
• Product code: A107/1120
• Type: for urinal
• Material: metal with powder coating
• Adjustable legs: 0–200 mm
• Drainage adjustment: 0–110 mm
• Water supply: 0–125 mm
• Urinal mounting distance: 80–280 mm
• Strength test: 150 kg
• EAN (GTIN): 8595580552725
