GLP DIN Rail Power Supply with 48V Output and 150W Power 2.7A
DIN Rail Power Supplies

GLP DIN Rail Power Supply with 48V Output and 150W Power 2.7A

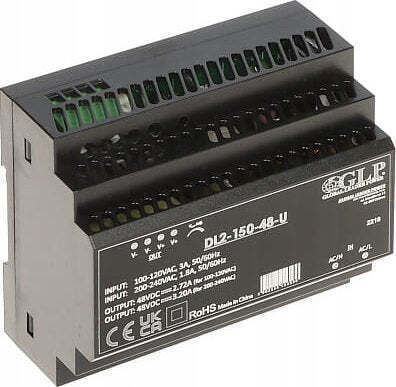

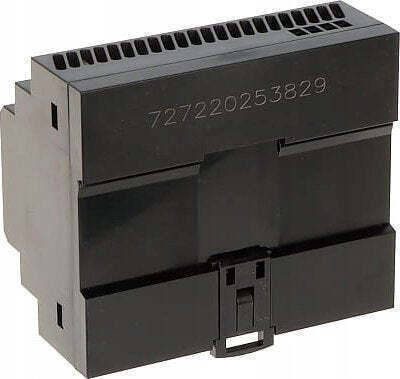

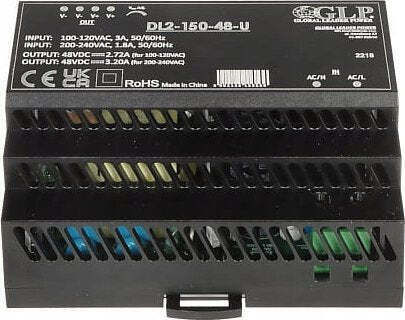

Pulse power supply GLP DL2-150-48-U for installation on DIN rail.

The following characteristic information is highlighted:

  • Output voltage: 48 V DC, adjustable from 43.2 ... 55.2 V DC
  • Current: 2.7 A @...

Pulse power supply GLP DL2-150-48-U for installation on DIN rail.

The following characteristic information is highlighted:

  • Output voltage: 48 V DC, adjustable from 43.2 ... 55.2 V DC
  • Current: 2.7 A @ 100 ... 120 V AC or 3.2 A @ 200 ... 240 V AC
  • Power capacity: 130 W @ 100 ... 120 V AC or 153 W @ 200 ... 240 V AC
  • Protections: against short circuit, overload,...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Pulse power supply GLP DL2-150-48-U for installation on DIN rail.

The following characteristic information is highlighted:

  • Output voltage: 48 V DC, adjustable from 43.2 ... 55.2 V DC
  • Current: 2.7 A @ 100 ... 120 V AC or 3.2 A @ 200 ... 240 V AC
  • Power capacity: 130 W @ 100 ... 120 V AC or 153 W @ 200 ... 240 V AC
  • Protections: against short circuit, overload, and overvoltage
  • Power supply type: Pulsed
  • Input voltage: 85 ... 264 V AC
  • DC input voltage: 120 ... 370 V DC
  • Number of outputs: 2 pcs.
  • Efficiency: 91%
  • Enclosure type: DIN
  • Operating temperature: -40 °C ... 70 °C
  • Relative humidity: 10 ... 95%
  • Weight: 0.34 kg
  • Dimensions: 105 x 89 x 58 mm
  • Ingress protection rating: IP20

Manufacturer

Manufacturer Details

Warnings & Safety Information
Output Voltage
48 V
Power
150 W
Power Intensity
2.7 A
UPS
No

UPS

Provides voltage to the output for a limited period of time in case of power outage.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

82,90 €
14,00 €   shipping cost
