DIN Rail Power Supply With 48V Output And 120W Power
DIN Rail Power Supplies

DIN Rail Power Supply With 48V Output And 120W Power

Switching Power Supply Delta Electronics for LED systems and other applications requiring a stable 48V DC power supply. This power supply offers an efficiency of 93% at full load and 90.5% at medium...

Switching Power Supply Delta Electronics for LED systems and other applications requiring a stable 48V DC power supply. This power supply offers an efficiency of 93% at full load and 90.5% at medium load, while featuring overvoltage and short-circuit protection. The DIN-type enclosure and compact dimensions facilitate installation.

  • Manufacturer: Delta...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Switching Power Supply Delta Electronics for LED systems and other applications requiring a stable 48V DC power supply. This power supply offers an efficiency of 93% at full load and 90.5% at medium load, while featuring overvoltage and short-circuit protection. The DIN-type enclosure and compact dimensions facilitate installation.

  • Manufacturer: Delta Electronics
  • Type: Switching
  • Input Voltage: 100 … 240 V AC (single phase)
  • Output Voltage: 48 V DC
  • Maximum Output Power: 120 W
  • Efficiency: 93% (at 100% load), 90.5% (at medium load)
  • Output Current Adjustment: 48 … 55 V
  • Number of Outputs: 1
  • Voltage Tolerance: ± 1%

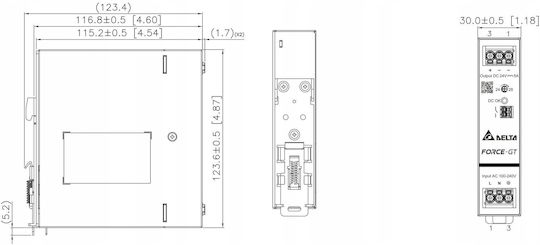

  • Dimensions: 31 x 124 x 124 mm
  • Weight: 0.5 kg
  • Enclosure Type: DIN
  • MTBF: 700,000 hours
  • Vibration Resistance: IEC60068-2-6, 10 … 500 Hz, max. 4 G for 60 minutes
  • Operating Temperature: -40 °C … 70 °C
  • Humidity: 5% … 90%

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
Output Voltage
48 V
Power
120 W
UPS
No

UPS

Provides voltage to the output for a limited period of time in case of power outage.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

99,90 €
14,00 €   shipping cost
