Delta DIN Rail Power Supply with 28V Output and 480W Power 20A
DIN Rail Power Supplies

Delta DIN Rail Power Supply with 28V Output and 480W Power 20A

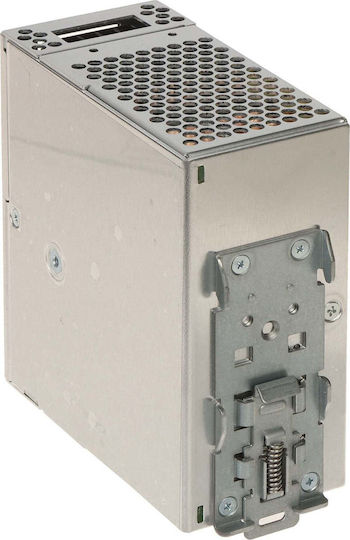

The pulse power supply Delta Electronics DRL-24V480W-1EN is designed for installation on a DIN rail. It provides a current of 20 A and a power of 480 W. The output voltage is adjustable from 24 to 28...

The pulse power supply Delta Electronics DRL-24V480W-1EN is designed for installation on a DIN rail. It provides a current of 20 A and a power of 480 W. The output voltage is adjustable from 24 to 28 V with a voltage tolerance of 1%. It supports operating temperatures up to 70 °C and is resistant to shocks according to the IEC60068-2-6 standard.

  • Type:...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

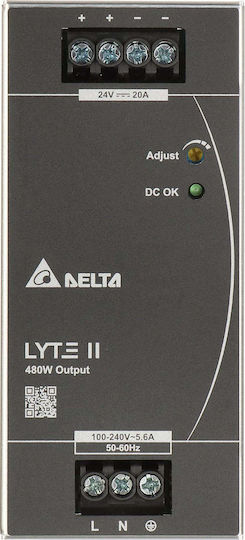

The pulse power supply Delta Electronics DRL-24V480W-1EN is designed for installation on a DIN rail. It provides a current of 20 A and a power of 480 W. The output voltage is adjustable from 24 to 28 V with a voltage tolerance of ± 1%. It supports operating temperatures up to 70 °C and is resistant to shocks according to the IEC60068-2-6 standard.

  • Type: pulse power supply

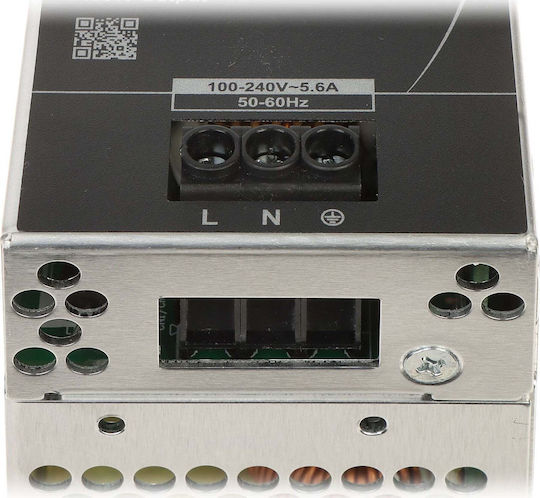

  • Power supply voltage: 90 ... 264 V AC

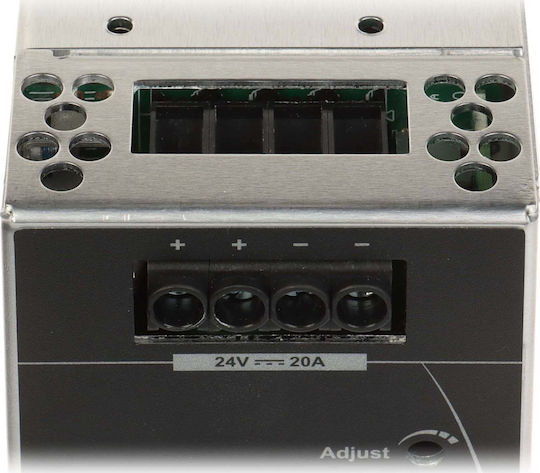

  • Output voltage: 24 V DC
  • Output voltage adjustment: 24 ... 28 V
  • Voltage tolerance: ± 1%
  • Current: 20 A
  • Power: 480 W
  • Number of outputs: 2 pcs.
  • Efficiency: 93%
  • Enclosure type: DIN
  • MTBF: 700,000 hours
  • Shock resistance: IEC60068-2-6, 10 ... 500 Hz, max. 3 G for 60 minutes
  • Protections: short circuit, overvoltage, temperature, overload
  • Operating temperature / relative humidity: -30 °C ... 70 °C / 20% ... 90%
  • Weight: 0.87 kg

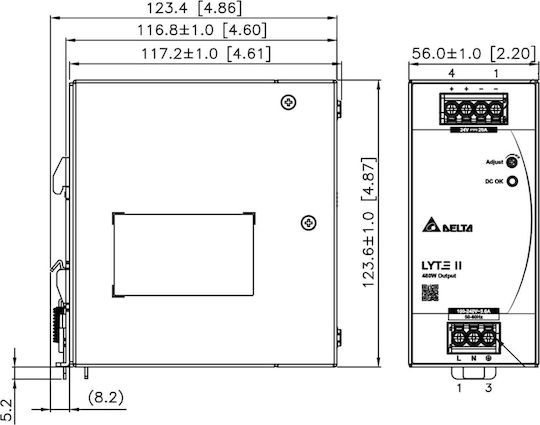

  • Dimensions: 56 x 123.4 x 123.6 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Output Voltage
28 V
Power
480 W
Power Intensity
20 A
UPS
No

UPS

Provides voltage to the output for a limited period of time in case of power outage.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
