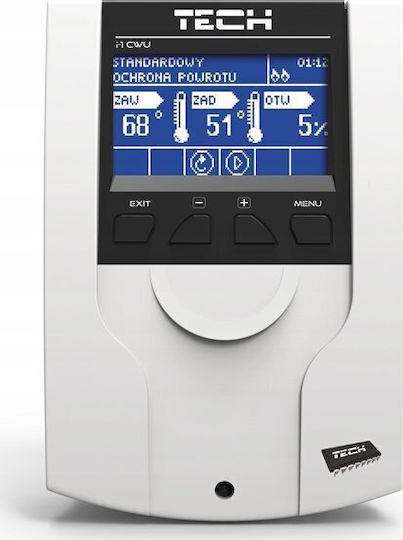

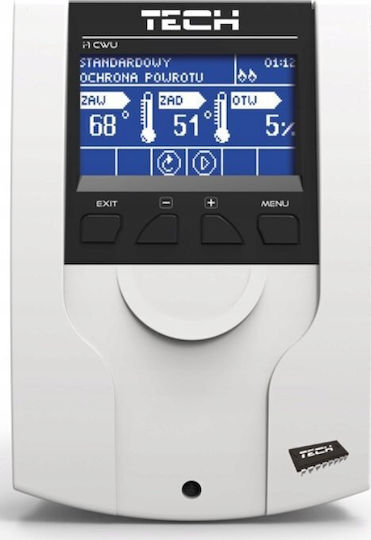

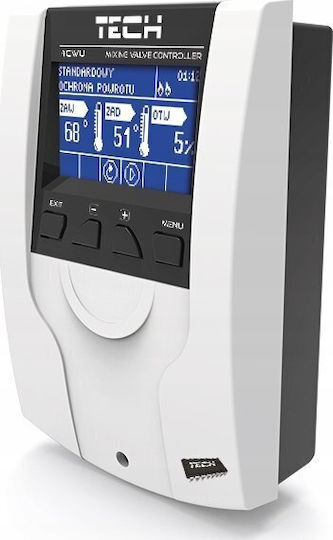

The Tech Boss industrial-type thermostat controls a three-way or four-way mixing valve and supports one actuator and a DHW circuit. It allows connection of a valve pump, an additional DHW circulation pump, and a volt-free contact for activating a heating appliance.

It includes an LCD display and boiler, valve, DHW, return, and outdoor sensors. It supports return temperature protection, weather compensation, and weekly control, as well as operation with a wired or two-position RS room thermostat. It can be connected to an ST-505 or WIFI RS module for management via eModul and is wall-mounted.

• Type: Thermostat
• Valve control: Three-way or four-way mixing valve
• Support: 1 actuator and DHW circuit
• Connections: Valve pump, additional DHW circulation pump, and volt-free contact for a heating appliance
• Temperature control: Return temperature protection, weather compensation, and weekly control
• Room thermostat: Wired or two-position RS
• Display: LCD
• Sensors: Boiler, valve, DHW, return, and outdoor
• Power supply: 230 V ± 10% / 50 Hz
• Maximum power consumption: 4 W
• Ambient temperature: 10–50 °C
• Sensor resistance: −30–99 °C
• Temperature setting: 0–90 °C
• Fuse: 1.6 A
• Load per output: 0.5 A
• Installation: Wall-mounted
