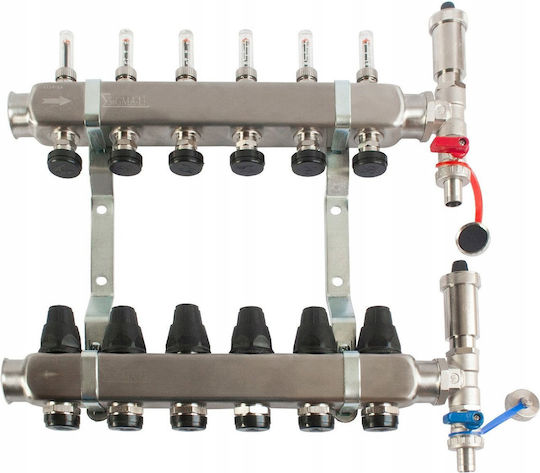

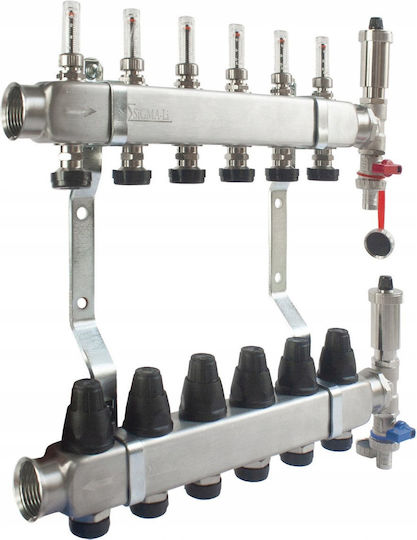

Ferro Collector Manifold Pipe 420mm
Manifold Pipes

Ferro Collector Manifold Pipe 420mm

Collector 13 outlets made of stainless steel INOX, suitable for distributing the heating medium in surface heating installations. It features flow meters, thermostatic valves, drain valves, and...

Collector 13 outlets made of stainless steel INOX, suitable for distributing the heating medium in surface heating installations. It features flow meters, thermostatic valves, drain valves, and automatic vents, facilitating the adjustment and maintenance of each circuit.

Technical specifications:

  • Dimensions: 420 x 710 x 74 mm
  • Distance between beam axes: 235...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Collector 13 outlets made of stainless steel INOX, suitable for distributing the heating medium in surface heating installations. It features flow meters, thermostatic valves, drain valves, and automatic vents, facilitating the adjustment and maintenance of each circuit.

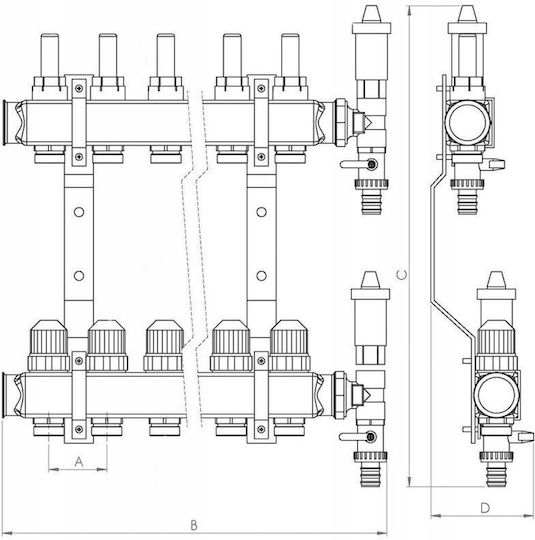

Technical specifications:

  • Dimensions: 420 x 710 x 74 mm
  • Distance between beam axes: 235 mm
  • Connection distance: 50 mm
  • Operating temperature: 5 °C to 70 °C
  • Maximum pressure: 0.6 MPa
  • Flow coefficient Kv, water, with a pressure drop of 1 bar: 0.53 m³/h
  • Flow coefficient Kv, glycol solution up to 50%, with a pressure drop of 1 bar: 0.51 m³/h
  • Maximum flow meter pressure: 0.6 MPa
  • Flow meter temperature: 5 °C to 70 °C
  • Flow meter measurement range: 0.5 – 5 l/min

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Switch
No

Dimensions

Diameter
420 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

400,90 €
14,00 €   shipping cost
