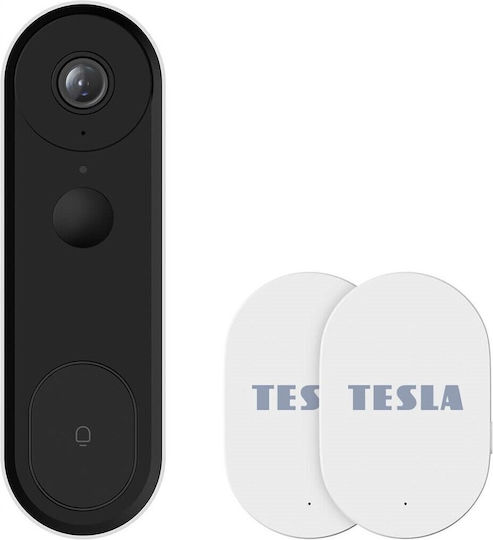

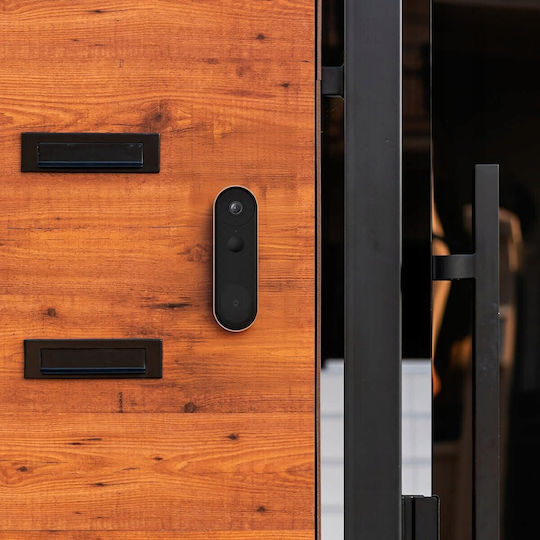

The Tesla SecureQ DB5 doorbell transmits 2K video through a camera with a 170° viewing angle and supports two-way communication via a microphone and speaker. It detects people and packages, while adjustable detection zones allow notifications to be sent for relevant events. It can be controlled via the TESLA Smart, Smart Life and Tuya apps, and supports Alexa and Google Assistant.

Night mode uses 850 nm IR infrared illumination, with a range of up to approximately 5 m. The 5200 mAh Li-ion battery provides approximately 4–6 months of operation with around 10 activations per day. Wired DC 5 V / 1.5 A power via USB-C is also supported, and the enclosure has an IP65 protection rating.

• Type: Smart video doorbell
• Camera resolution: 2K (approximately 2304 × 1296)
• Viewing angle: 170°
• Two-way communication: Microphone and speaker
• Detection: People and packages, with adjustable detection zones
• Night mode: 850 nm IR infrared illumination, range up to approximately 5 m
• Video codecs: H.265 (main stream), H.264 (substream)
• Data transmission rate: 1 Mbps (main), 384 kbps (sub)
• Frame rate: 15 fps (main), 20 fps (sub)
• Lens: 2.5 mm focal length, F2.2 aperture
• Connectivity: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n), 433 MHz RF
• Smart ecosystem compatibility: Alexa, Google Assistant
• Control apps: TESLA Smart, Smart Life, Tuya
• Battery: Li-ion, 5200 mAh
• Operating time: Approximately 4–6 months with around 10 activations per day
• Power supply: DC 5 V / 1.5 A via USB-C
• Enclosure protection: IP65
• Storage: microSD up to 128 GB or optional cloud storage
• Operating temperature: -20 °C to +50 °C
• Dimensions: 48 × 155 × 32 mm
• Weight: Approximately 210 g

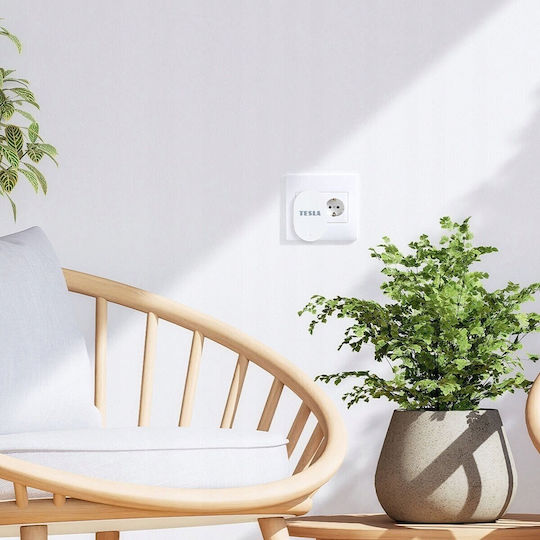

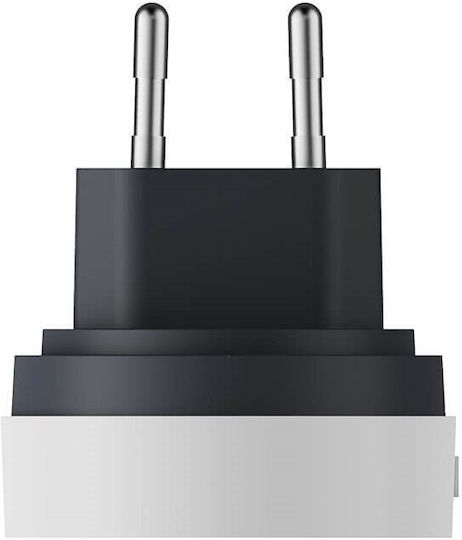

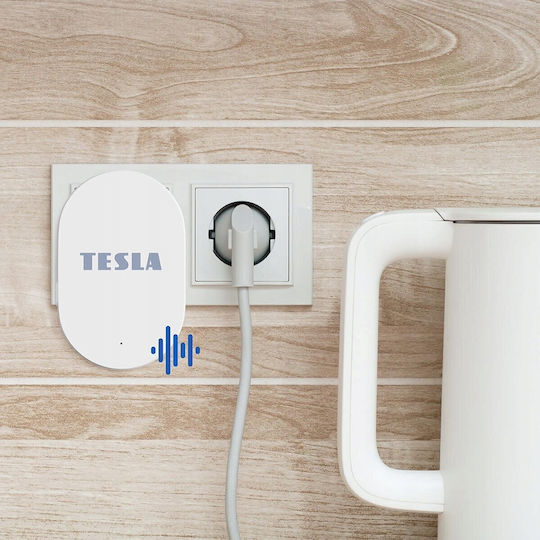

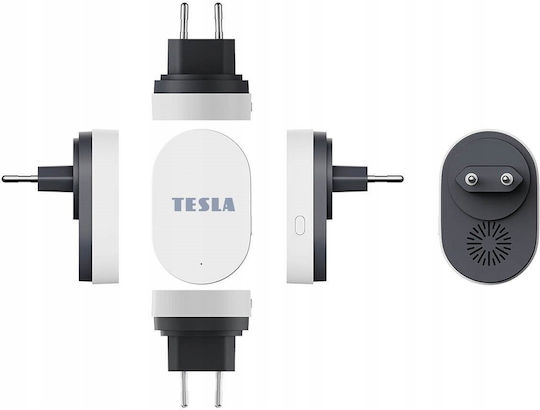

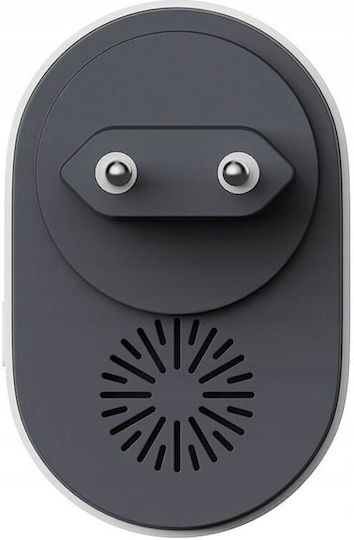

• Package contents: Doorbell, 2 indoor chime units, removal pin, cables, power extension, mounting template and bracket, 3M tape, screws, manual
