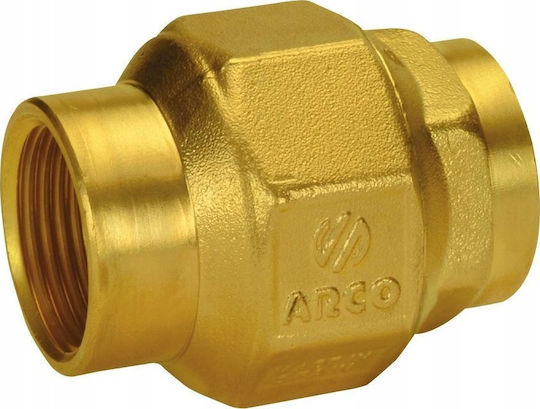

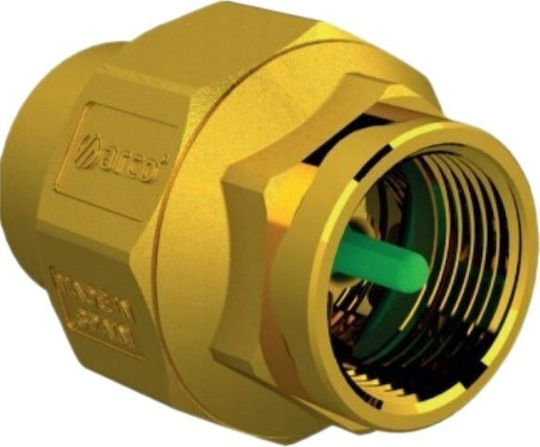

Arco Female Brass Non-return Valve 2" 2mm 191208
Misc Pipe Connections

Arco Female Brass Non-return Valve 2" 2mm 191208

The VITAQ 2" check valve from Arco Pl is designed for water supply networks and prevents backflow of water. It is suitable for drinking water and hot water for use. Its construction is made of brass...

The VITAQ 2" check valve from Arco Pl is designed for water supply networks and prevents backflow of water. It is suitable for drinking water and hot water for use. Its construction is made of brass and features a spring-loaded clapper.

  • Manufacturer: Arco Pl
  • Nominal Diameter: 2 inches (50 mm)
  • Connections: internal BSPT-Rc gas tapered thread (ISO 7-1 / EN...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The VITAQ 2" check valve from Arco Pl is designed for water supply networks and prevents backflow of water. It is suitable for drinking water and hot water for use. Its construction is made of brass and features a spring-loaded clapper.

  • Manufacturer: Arco Pl
  • Nominal Diameter: 2 inches (50 mm)
  • Connections: internal BSPT-Rc gas tapered thread (ISO 7-1 / EN 10226-1)
  • Pressure Class: PN 16
  • Model: straight
  • Surface Protection: untreated
  • Nominal Pressure: 16 bar
  • Temperature Range: from 0°C to 85°C
  • Medium: drinking water and hot water for use
  • Manufacturer Code: 191208
  • EAN (GTIN): 8428519077597

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Size
2"
Type
Non-return Valve
Material
Brass
Type
Female
Multilayer Pipe
No
America
-

Dimensions

Diameter
2 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The VITAQ 2" check valve from Arco Pl is designed for water supply networks and prevents backflow of water. It is suitable for drinking water and hot water for use. Its construction is made of brass and features a spring-loaded clapper.

  • Manufacturer: Arco Pl
  • Nominal Diameter: 2 inches (50 mm)
  • Connections: internal BSPT-Rc gas tapered thread (ISO 7-1 / EN 10226-1)
  • Pressure Class: PN 16
  • Model: straight
  • Surface Protection: untreated
  • Nominal Pressure: 16 bar
  • Temperature Range: from 0°C to 85°C
  • Medium: drinking water and hot water for use
  • Manufacturer Code: 191208
  • EAN (GTIN): 8428519077597

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Size
2"
Type
Non-return Valve
Material
Brass
Type
Female
Multilayer Pipe
No
America
-

Dimensions

Diameter
2 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
