Ferro Pipe Collector - Pipe Manifold 420mm
Manifold Pipes

Ferro Pipe Collector - Pipe Manifold 420mm

12-outlet collector made of stainless steel INOX, suitable for distributing the heating medium to individual circuits of underfloor or surface heating systems. It features flow meters, thermostatic...

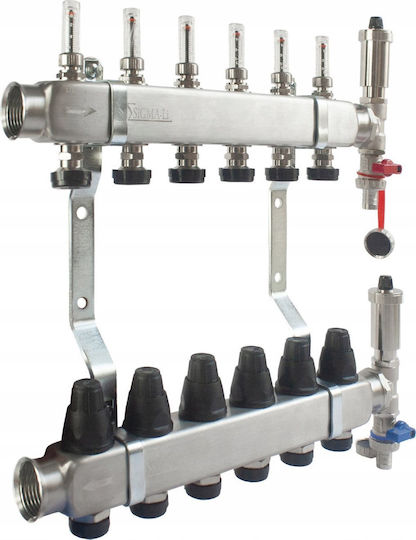

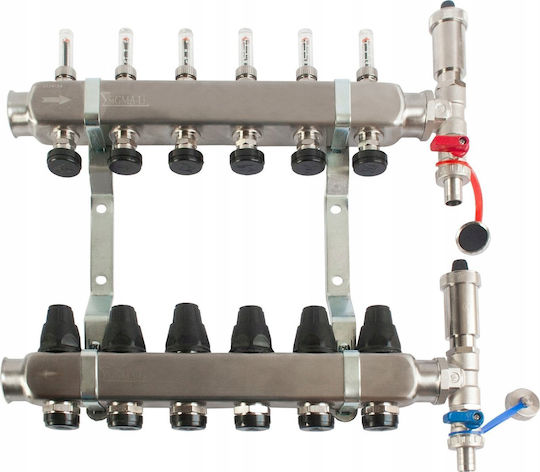

12-outlet collector made of stainless steel INOX, suitable for distributing the heating medium to individual circuits of underfloor or surface heating systems. It features flow meters, thermostatic valves, drain valves, and automatic air vents.

Technical specifications:

  • Dimensions: 420 x 660 x 74 mm
  • Distance between beam axes: 235 mm
  • Connection distance: 50...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

12-outlet collector made of stainless steel INOX, suitable for distributing the heating medium to individual circuits of underfloor or surface heating systems. It features flow meters, thermostatic valves, drain valves, and automatic air vents.

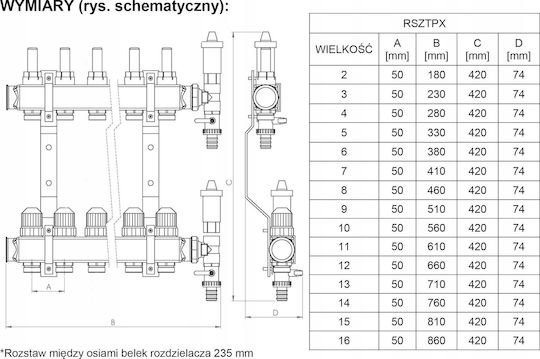

Technical specifications:

  • Dimensions: 420 x 660 x 74 mm
  • Distance between beam axes: 235 mm
  • Connection distance: 50 mm
  • Maximum operating temperature: 70 °C
  • Minimum operating temperature: 5 °C
  • Maximum pressure: 0.6 MPa
  • Flow coefficient Kv with water: 0.53 m3/h
  • Flow coefficient Kv with glycol solution up to 50%: 0.51 m3/h

The use of pumping-mixing units must comply with the technical study of the specific project and the applicable regulations and installation standards.

Operation parameters of the flow meter:

  • Maximum pressure: 0.6 MPa
  • Maximum temperature: 70 °C
  • Minimum temperature: 5 °C
  • Measurement range: 0.5 – 5 l/min

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Switch
No

Dimensions

Diameter
420 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

374,90 €
14,00 €   shipping cost
