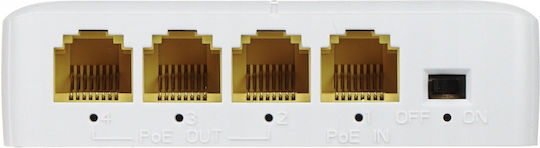

The PoE SPT-POE/3-POE-DIN switch has 4 ports and also functions as a LAN network extender. LAN ports 2 to 4 provide PoE power, while LAN 1 acts as an Uplink and PoE power input.

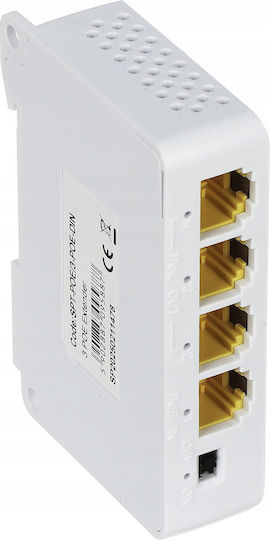

It supports desktop placement or mounting on a TS-35 DIN rail.

• Manufacturer: Delta
• Ports: 4
• LAN Ports: 3 x RJ45 10/100 Base-T + PoE (802.3af/at), 1 x RJ45 10/100/1000 Base-T - Uplink + PoE power input (802.3af/at)
• Management: None
• LED Indicators: Link/Act
• Transmission Speed: 10/100 Mbps for 4 RJ-45 + PoE OUT ports, 10/100/1000 Mbps for 1 RJ45 (Uplink) + PoE IN port
• Maximum Output Power: 30 W @ PoE port
• Maximum Total Power: 30 W
• MAC Address Table: 2k
• Enclosure: Plastic, Desktop / TS-35 DIN rail
• Power Supply: 48 ... 56 VDC - Hi-PoE (802.3af/at/bt) @ LAN 1
• Operating Temperature: -35 °C ... 80 °C
• Weight: 0.06 kg
• Dimensions: 87 x 55 x 23 mm
