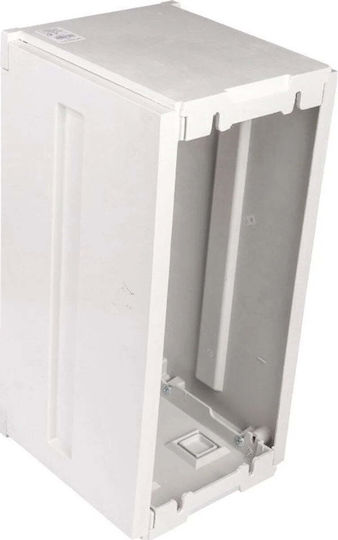

Painted plastic cable case, suitable as an intermediate base element. The modular construction allows different panel configurations. The surface is ribbed and the coating is done with polyurethane varnish.

• Manufacturer: INCOBEX
• Model: Intermediate base element
• Code: IOB-52000-01-000
• Color: Grey (RAL 7035)
• Material: Plastic
• Dimensions:
• Height: 250 mm
• Width: 530 mm
• Depth: 266 mm
• Suitable for cable organization: Yes
• Suitable for ventilation/exhaust: No
• Suitable for outdoor installation: Yes
• Rated insulation voltage (Ui): 1000 V AC, 1500 V DC
• Mechanical strength: IK10
• Flame retardant property: Flammability category V0
• Resistance to excessive heat: 960°C
• Varnish protection: Yes
