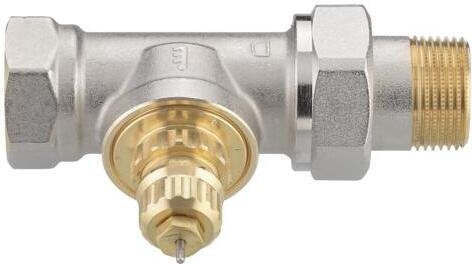

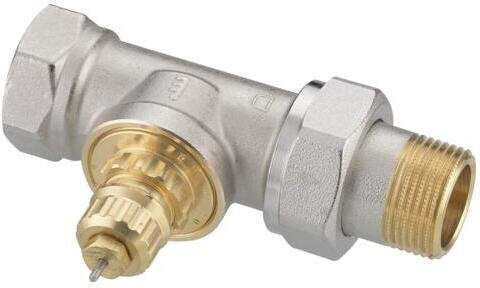

The thermostatic valve Danfoss THERMOSTATIC V RA-G 20 STRAIGHT 013G1677 is designed for one-pipe heating systems. The straight design facilitates installation, while the nickel-plated surface and corrosion-resistant materials support long-term use.

• Type: RA-G (high flow)
• Maximum operating pressure: 16 bar
• Maximum test pressure: 25 bar
• Maximum operating temperature: 120 °C
• Kvs: 3.81 m³/h
• Kv at Xp = 2 K: 2.060 m³/h
• Dimensions: 20 mm (DN 20)
• Connection: internal Rp 3/4, external R 3/4
• Net weight: 0.394 kg
• Gross weight: 0.415 kg
• Volume: 0.57 liters
• Package dimensions (L × W × H): 96 × 49 × 93 mm
• RoHS compliance: yes, with exemptions
• Packaging quantity: 1 pcs.
