Single-pole overhead connection terminal box CHE-F suitable for all single-pole polymer cables. The product features:
- Flexible silicone strain relief elements for reliable control under all operating conditions.
- Combination of sliding and heat-shrink components for safe and easy installation.
- Outdoor application and ready for immediate use.
Contents:
- 1 set for 3 phases
- Heat-shrink tube resistant to leakage currents
- Silicone strain relief elements
- Silicone sheds
- Sealing tapes
- Installation accessories
- Installation instructions
Technical characteristics:
- Storage temperature / allowable storage time: unlimited
- Number of sheds per phase: 3

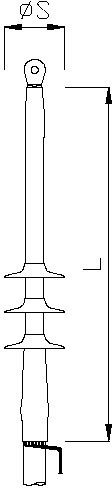

- Length: 500.0 mm
- Shed diameter S: 85.0 mm
- Number of supply cable conductors: 1
- Diameter at cable insulation after removal of the external semiconductive layer: ≥ 19.9 mm
- 24 kV cross-section: 70.0 mm² – 240.0 mm²
- Case
- No
- with Glue
- No
