Schneider Electric Automatic Circuit Breaker 20A 3 Pole AC/DC A9F05320
Automatic Circuit Breaker

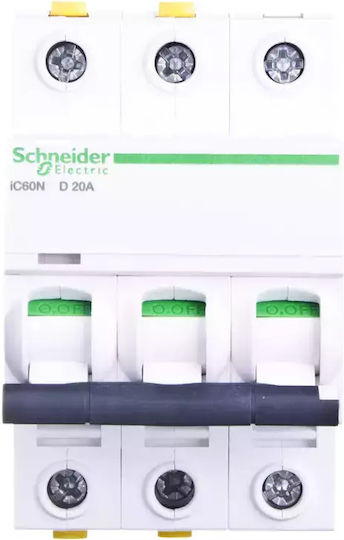

Schneider Electric Automatic Circuit Breaker 20A 3 Pole AC/DC A9F05320

The Schneider Electric IC60N miniature circuit breaker is designed for power distribution and interrupts overcurrents using thermal-magnetic tripping. It has three protected poles, a D tripping curve,...

The Schneider Electric IC60N miniature circuit breaker is designed for power distribution and interrupts overcurrents using thermal-magnetic tripping. It has three protected poles, a D tripping curve, and operates on AC and DC networks.

  • Rated current: 20 A
  • Number of poles: 3
  • Protected poles: 3
  • Network type: AC and DC
  • Tripping technology: Thermal-magnetic
  • ...
See Description & Specifications See Description & Specifications
56 90 €
Delivery Mon, 16 Nov - Fri, 20 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (112)
4.6 (112 reviews)
Greece
14 pieces
See Electrical Panel Supplies on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Schneider Electric IC60N miniature circuit breaker is designed for power distribution and interrupts overcurrents using thermal-magnetic tripping. It has three protected poles, a D tripping curve, and operates on AC and DC networks.

  • Rated current: 20 A
  • Number of poles: 3
  • Protected poles: 3
  • Network type: AC and DC
  • Tripping technology: Thermal-magnetic
  • Tripping curve: D
  • Magnetic tripping: 12 x In +/- 20 %
  • Frequency: 50/60 Hz
  • Breaking capacity Icu: 10 kA at 125...180 V DC, 36 kA at 12...133 V AC, 6 kA at 440 V AC, 20 kA at 220...240 V AC, and 10 kA at 380...415 V AC
  • Breaking capacity Icn: 6000 A at 400 V AC
  • Breaking capacity Ics: 10 kA and 6000 A at 100 % x Icu; 27 kA, 4.5 kA, 7.5 kA, and 15 kA at 75 % x Icu
  • Category: A
  • Isolation function: Yes
  • Current-limiting class: 3
  • Rated insulation voltage Ui: 500 V AC
  • Rated impulse withstand voltage Uimp: 6 kV
  • Contact position indication: Yes
  • Operation: Toggle with trip indication
  • Mounting: DIN rail
  • Width: 6 modules of 9 mm
  • Dimensions: 91 × 54 × 78.5 mm
  • Weight: 0.375 kg
  • Colour: White
  • Mechanical endurance: 20000 cycles
  • Electrical endurance: 10000 cycles
  • Flexible conductor connection: 1...16 mm²
  • Rigid conductor connection: 1...25 mm²
  • Stripping length: 14 mm
  • Tightening torque: 2 N.m
  • Earth-leakage protection: With a separate block
  • Standards: IEC 60947-2, EN 60947-2, IEC 60898-1, EN 60898-1
  • Degree of protection: IP20 according to EN 60529 and IEC 60529
  • Pollution degree: 3
  • Overvoltage category: IV
  • Tropicalisation: 2
  • Humidity: 95 % at 55 °C
  • Operating temperature: -35...70 °C
  • Storage temperature: -40...85 °C
  • Environmental label: Green Premium

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
20 A
Operating Curve
Curve D

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve D

It is used for heavy loads with high starting peaks, such as large motors and transformers.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
