KOOP Elektro Automatic Circuit Breaker 10A Single Pole AC 1-00015-15499
Automatic Circuit Breaker

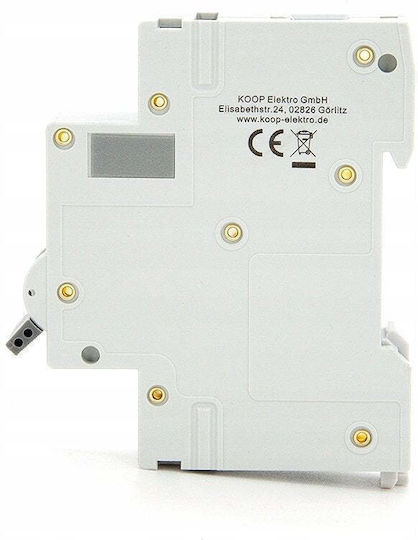

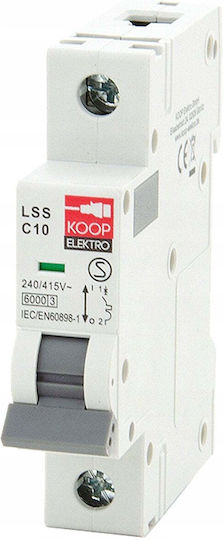

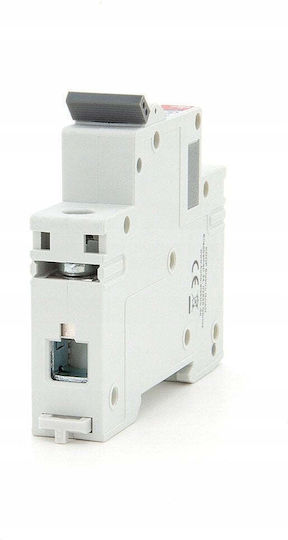

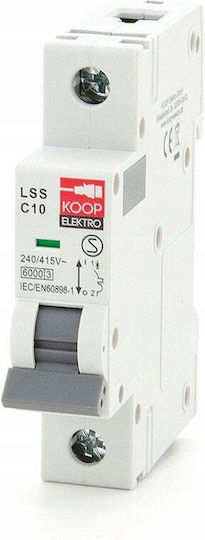

KOOP Elektro Automatic Circuit Breaker 10A Single Pole AC 1-00015-15499

Automatic switch KOOP Elektro LSS C10 1P with characteristic curve C, designed to protect electrical circuits from overloads and short circuits. It also includes the capability for manual circuit...

Automatic switch KOOP Elektro LSS C10 1P with characteristic curve C, designed to protect electrical circuits from overloads and short circuits. It also includes the capability for manual circuit disconnection.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 240/415V AC
  • Rated frequency: 50/60 Hz
  • Short-circuit breaking capacity: 6kA
  • Degree of...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Automatic switch KOOP Elektro LSS C10 1P with characteristic curve C, designed to protect electrical circuits from overloads and short circuits. It also includes the capability for manual circuit disconnection.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 240/415V AC
  • Rated frequency: 50/60 Hz
  • Short-circuit breaking capacity: 6kA
  • Degree of protection: IP20
  • Number of units: 1
  • Certification: CE
  • Mounting: DIN rail, TH35 according to EN 50022

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
1
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Automatic switch KOOP Elektro LSS C10 1P with characteristic curve C, designed to protect electrical circuits from overloads and short circuits. It also includes the capability for manual circuit disconnection.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 240/415V AC
  • Rated frequency: 50/60 Hz
  • Short-circuit breaking capacity: 6kA
  • Degree of protection: IP20
  • Number of units: 1
  • Certification: CE
  • Mounting: DIN rail, TH35 according to EN 50022

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

6,90 €
14,00 €   shipping cost
