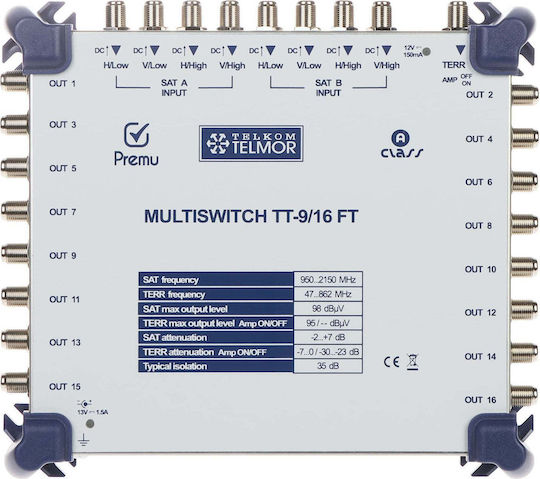

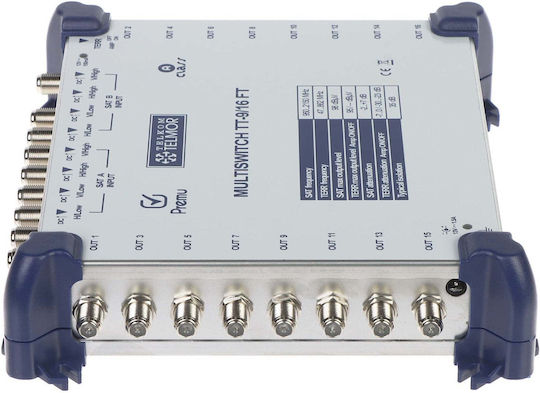

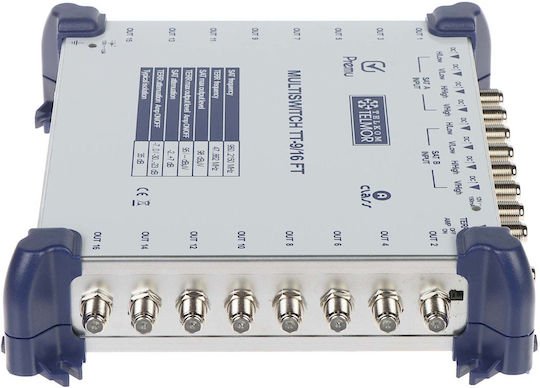

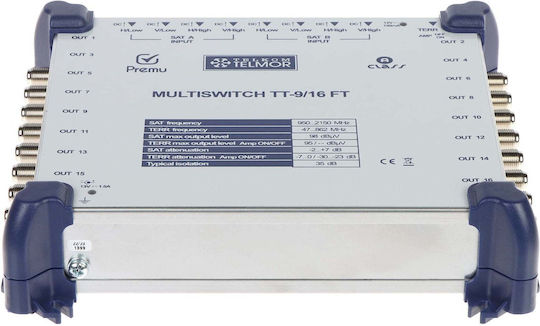

The multiswitch PREMU TT-9/16 FT is a next-generation device, designed and manufactured in Poland. As a cascaded and terminal multiswitch, it is intended for extensive RTV/SAT installations and collective installations. It supports signal connection from two quattro type converters and distribution to up to 16 receivers. It provides high signal quality and low crosstalk attenuation. It operates with 13 V DC and supports quattro type converters. The power supply is included.

The durable sockets allow repeated connection and disconnection of cables with different internal conductor thicknesses, while the spring in the sockets indicates the correct connection.

• 9 inputs and 16 outputs
• Support for quattro type converters
• Low crosstalk attenuation

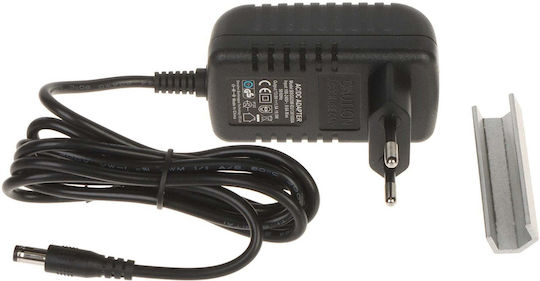

• Power supply 13 V DC / 150 mA, power supply included

Technical specifications:

• Manufacturer code: WSM-0102-005-01
• Brand: Telkom-Telmor
• Model: PREMU TT-9/16 (FT)
• SAT frequency range: 950-2150 MHz
• TV frequency range: 47-862 MHz
• TV branch attenuation: Active -7...0 dB, Passive -30...-23 dB
• SAT branch attenuation: -2...+7 dB
• TV/SAT return loss: 12 dB
• Maximum TV output level: 90 dBuV (47-170 MHz), 95 dBuV (170-862 MHz)
• Maximum SAT output level: 98 dBuV
• TV to SAT isolation: ≥ 30 dB
• SAT to TV isolation: ≥ 45 dB
• Polarization isolation: 35 dB
• Power consumption from receiver: max 50 mA
• Switching commands: DiSEqC 1.0 (13/18V, 0/22 kHz)
• Dimensions: 215 x 193 x 51 mm
