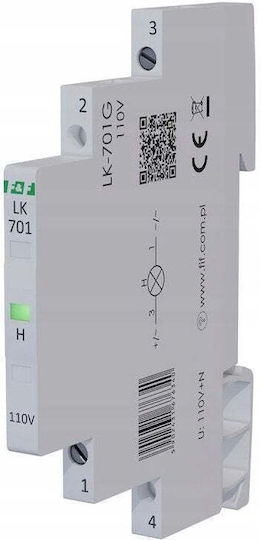

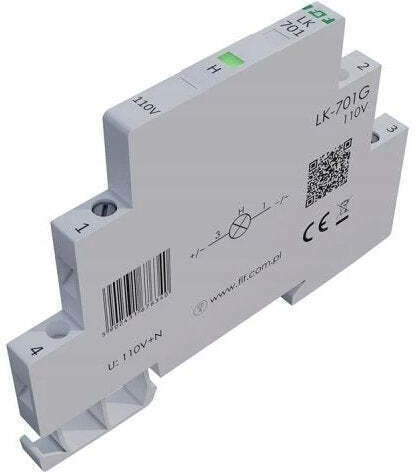

The single-phase modular lamp LK-701G-110 features a green LED light that visually indicates the presence of voltage in a 110V AC electrical circuit. With a width of just 6.2 mm, it saves space in the electrical panel and is installed quickly and easily.

• Voltage type: AC
• Rated voltage: 110 V
• Light source: LED, maximum power 0.05 W
• Cover color: green
• Width: 0.3 unit / 1/3 unit (6.2 mm)
• Embedding depth: 65 mm
• Protection degree: IP20
• Operating temperature: -25 ÷ 50 °C
• Connections: plug-in, 2.5 mm²
• Tightening torque: 0.4 Nm
• Power consumption: 1.1 W

In installations with circuit breakers of 25 A or higher, the lamp circuit must be protected by a fuse up to 6 A. The device is intended for indoor use and has a protection rating of IP20.
