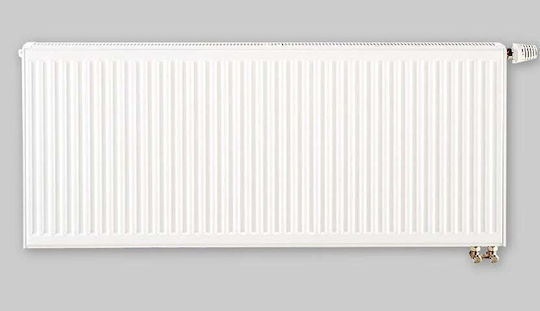

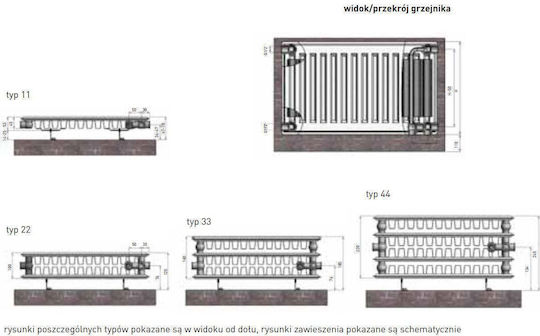

Panel radiator with bottom supply and built-in thermostatic valve. The valve can be used with thermostatic heads from most manufacturers. Type 11 features “L” type mounting, with standard supply from the right side and optionally from the left.

The other types do not have “ears” and can be supplied from the right or left, with “Monclac” type mounting (not included in the radiator price).

Accessory bag included with:

• air vent
• caps
• screws
• wall plugs

Also included is protective packaging. The multi-stage painting process includes degreasing and iron phosphating, water-based primer paint, and epoxy-polyester powder coating. Thermal output has been tested according to EN 442.

Technical characteristics:

• Connections: 6x 1/2'
• Connection: bottom or side
• Maximum operating pressure: 10 bar
• Heating medium: hot water up to 95°C
• Type: 11
• Height: 600mm
• Length: 400mm
• Output 75/65/20°C: 362W
• Output 70/55/20°C: 294W
• Output 55/45/20°C: 187W
