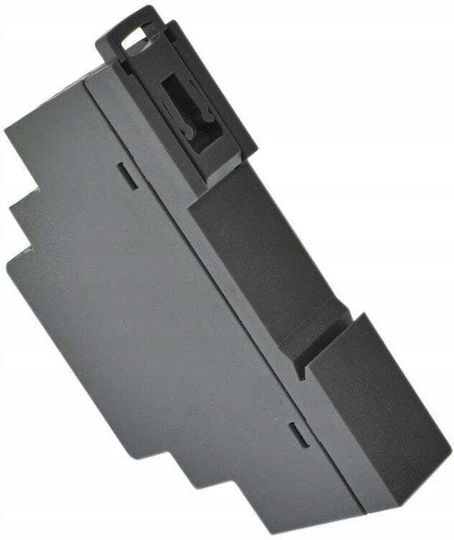

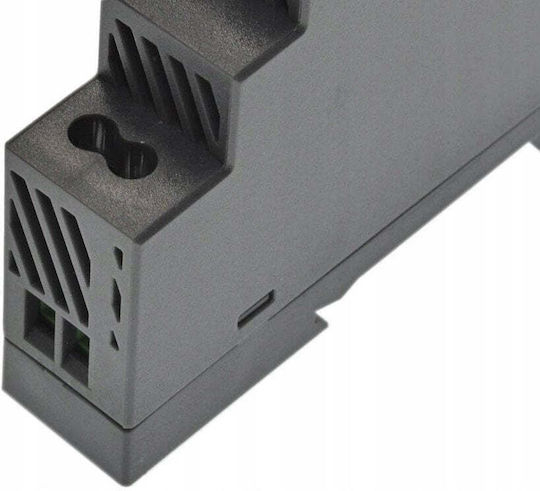

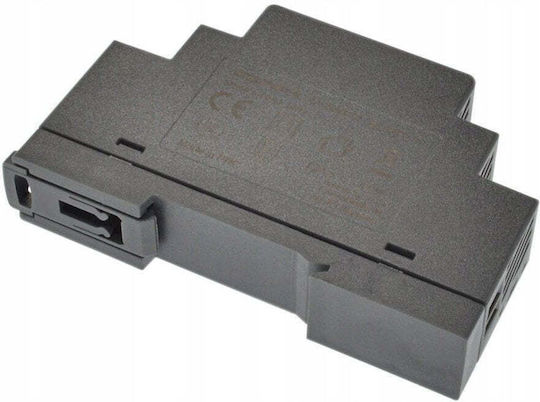

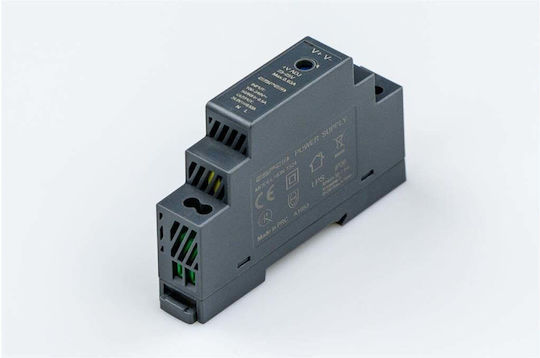

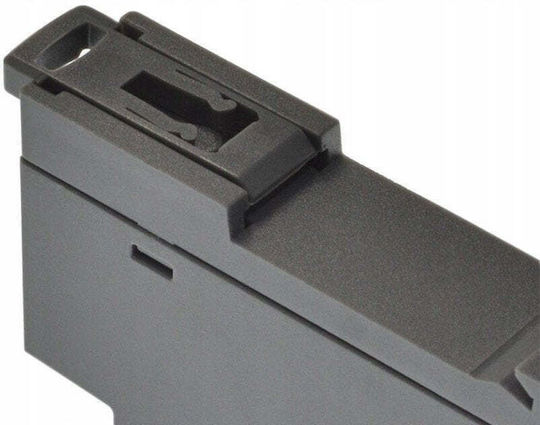

APC DIN Rail Power Supply with 24V Output and 15W Power 0.63A

DIN Rail Power Supplies

APC DIN Rail Power Supply with 24V Output and 15W Power 0.63A

ESPE HDN-1524 switching power supply for DIN rail TS35 mm

Output: 24.00 V
Maximum current: 0.63 A
Power capacity: 15.00 W
Size: 1U, compact perforated design for easy installation and ventilation
...

ESPE HDN-1524 switching power supply for DIN rail TS35 mm

Output: 24.00 V
Maximum current: 0.63 A
Power capacity: 15.00 W
Size: 1U, compact perforated design for easy installation and ventilation
Trimmer: output voltage adjustment from 23 to 25 V
Dual terminals: output
Manufacturer code: HDN-1524
Input voltage: 100-240 VAC
Frequency: 47-53 Hz
No-load...

See Description & Specifications See Description & Specifications

21 90 €

Delivery Wed, 14 Oct - Tue, 20 Oct

14,00 € shipping cost

Sent from Greece

From Getters 4.6 (107)

4.6 (107 reviews)

Greece

6 pieces

See Electrical Panel Supplies on the page of Getters

Review the product

Description & Specifications

Description

Specifications

ESPE HDN-1524 switching power supply for DIN rail TS35 mm

Output: 24.00 V
Maximum current: 0.63 A
Power capacity: 15.00 W
Size: 1U, compact perforated design for easy installation and ventilation
Trimmer: output voltage adjustment from 23 to 25 V
Dual terminals: output
Manufacturer code: HDN-1524
Input voltage: 100-240 VAC
Frequency: 47-53 Hz
No-load consumption: below 0.25 W
Regulation type: CV, constant output voltage
Maximum output ripple: 150 mVp-p
Conversion efficiency: above 85%
Operating temperature: -10°C to +40°C
MTBF: 30k h
Dimensions: 90x58x18 mm
Weight: 70 g
Enclosure: IP20

Manufacturer

APC - DIN Rail Power Supplies APC

Output Voltage: 24 V

Power: 15 W

Power Intensity: 0.63 A

UPS: No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
