Misc Pipe Connections

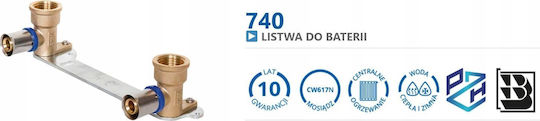

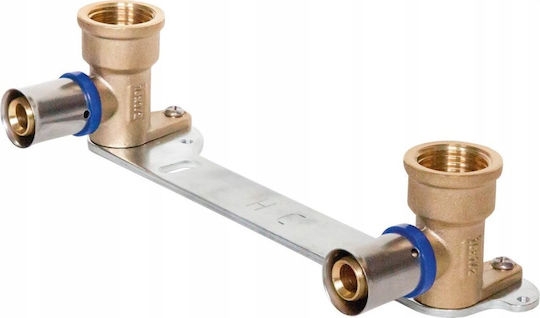

Perfexim Polypropylene Pipe Connection 16mm 62-740-0150-000

Mounting unit with press fittings, made of CW617N brass, steel rail with galvanic coating and clamping ring made of AISI304 stainless steel. It features double "O" type sealing rings made of NBR and...

Mounting unit with press fittings, made of CW617N brass, steel rail with galvanic coating and clamping ring made of AISI304 stainless steel. It features double "O" type sealing rings made of NBR and is intended for hot and cold water installations, as well as heating with radiators and underfloor heating.

  • Manufacturer: Perfexim
  • Type: mounting rail
  • ...
See full description See full description

Learn more about invoicing

Description

Description

Mounting unit with press fittings, made of CW617N brass, steel rail with galvanic coating and clamping ring made of AISI304 stainless steel. It features double "O" type sealing rings made of NBR and is intended for hot and cold water installations, as well as heating with radiators and underfloor heating.

  • Manufacturer: Perfexim
  • Type: mounting rail
  • Manufacturer code: 62-740-0150-000

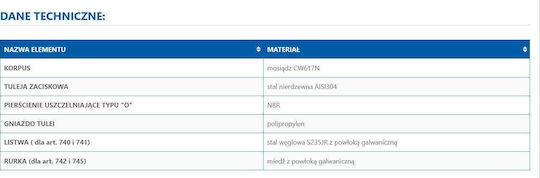

  • Material: CW617N brass
  • Length: 150 mm
  • Diameter: 16 mm
  • Maximum operating pressure: 0.6 - 1.0 MPa
  • Body: CW617N brass
  • Rail: carbon steel with galvanic coating
  • Clamping ring: AISI304 stainless steel
  • Sealing rings: NBR
  • Ring seat: polypropylene
  • Application: hot and cold water installations, heating installations (heating with radiators and underfloor heating)

Manufacturer

See full description

Specifications

Specifications

Specifications

Material
Polypropylene
Multilayer Pipe
No
America
-

Dimensions

Diameter
16 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Mounting unit with press fittings, made of CW617N brass, steel rail with galvanic coating and clamping ring made of AISI304 stainless steel. It features double "O" type sealing rings made of NBR and is intended for hot and cold water installations, as well as heating with radiators and underfloor heating.

  • Manufacturer: Perfexim
  • Type: mounting rail
  • Manufacturer code: 62-740-0150-000
  • Material: CW617N brass
  • Length: 150 mm
  • Diameter: 16 mm
  • Maximum operating pressure: 0.6 - 1.0 MPa
  • Body: CW617N brass
  • Rail: carbon steel with galvanic coating
  • Clamping ring: AISI304 stainless steel
  • Sealing rings: NBR
  • Ring seat: polypropylene
  • Application: hot and cold water installations, heating installations (heating with radiators and underfloor heating)

Manufacturer

Specifications

Material
Polypropylene
Multilayer Pipe
No
America
-

Dimensions

Diameter
16 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
