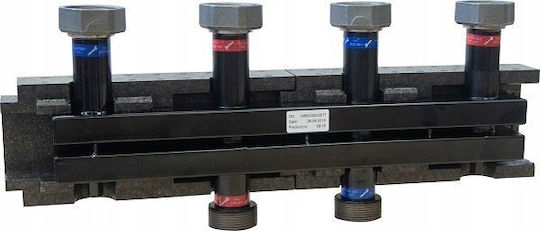

Afriso Pipe Manifold Collector 8077310

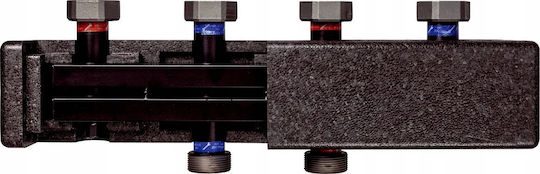

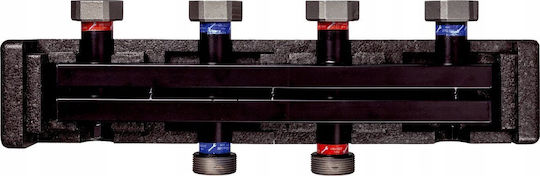

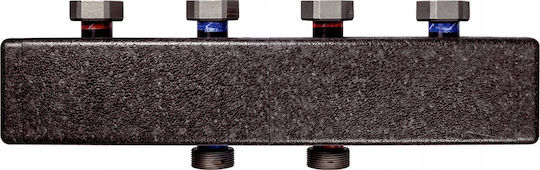

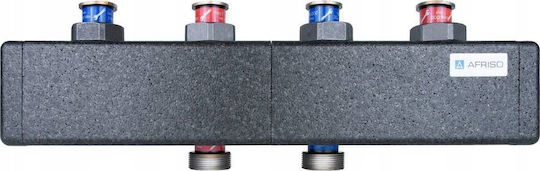

Afriso hydraulic manifold KSV 125-2 for two pump circuits, with thermal insulation and factory leak testing. It allows connection of PrimoTherm 180-1 or PrimoTherm 180-2 pump units to the heat source....

Afriso hydraulic manifold KSV 125-2 for two pump circuits, with thermal insulation and factory leak testing. It allows connection of PrimoTherm 180-1 or PrimoTherm 180-2 pump units to the heat source. Compatible with the PN-EN 12828 standard.

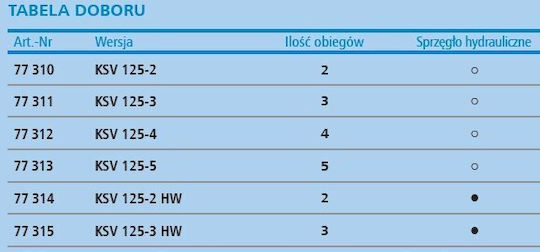

  • Number of circuits: 2
  • Brand: Afriso
  • Manufacturer code: 77310
  • Height: 25.00 cm
  • Width: 20.00 cm
  • Depth: 10.00 cm
  • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Afriso hydraulic manifold KSV 125-2 for two pump circuits, with thermal insulation and factory leak testing. It allows connection of PrimoTherm 180-1 or PrimoTherm 180-2 pump units to the heat source. Compatible with the PN-EN 12828 standard.

  • Number of circuits: 2
  • Brand: Afriso
  • Manufacturer code: 77310
  • Height: 25.00 cm
  • Width: 20.00 cm
  • Depth: 10.00 cm

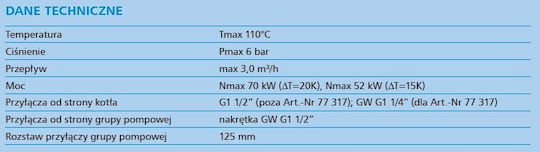

  • Maximum operating temperature: 110 °C
  • Manifold connection diameter: 1.50 '
  • Maximum pressure: 6 bar

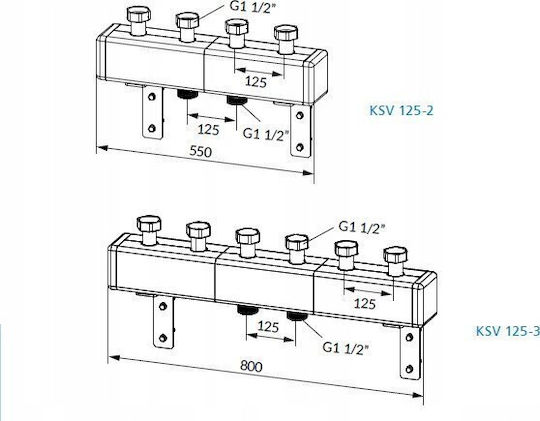

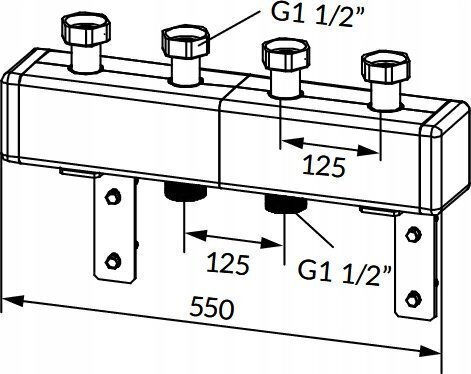

  • Boiler side connections: G1 ½'
  • Installation side connections: GW G1 ½'
  • Flow rate: 3.0 m³/h
  • Weight with packaging: 6.500 kg
  • Compliance: Pressure Equipment Directive 2014/68/EU
