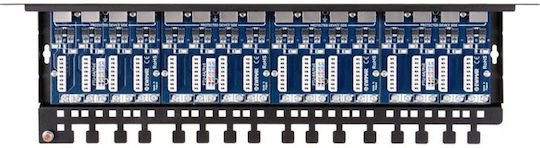

Ewimar is a 16-channel patch panel with surge protection for Gigabit Ethernet, designed for installation in a 19" rack cabinet. It supports 10Base-T, 100Base-T and 1000Base-T Ethernet, Category 5, 5e and 6 cabling, and all types of PoE power supply, including Hi PoE. The protection requires proper grounding and is intended for indoor installations without sparking from other systems.

• Type: Protection
• Quantity: 1
• LAN channels: 16
• Input: LSA connectors
• Output: Shielded Category 6 RJ-45 socket
• Supported Ethernet standards: 10Base-T, 100Base-T and 1000Base-T
• Cabling categories: 5, 5e and 6
• PoE power supply support: All types, including Hi PoE
• Protected lines: 1-2, 3-6, 4-5, 7-8
• Line-to-ground: Nominal voltage 90 V DC, maximum voltage 110 V DC, protection level 600 V, 100 A (8/20 µs)
• Line-to-line: Nominal voltage 3.3 V DC, maximum voltage 3.5 V DC, protection level 28 V
• Line-to-line capacitance: 15 pF
• Line-to-ground capacitance: 2–3 pF at 1 MHz
• Series resistance: 2.2 Ω per line
• Nominal IN current: 300 mA per line
• PoE line: Nominal voltage 57 V DC, maximum voltage 64 V DC, UP protection level 90 V
• Dimensions: 480 × 41 × 130 mm
• Operating temperature: -30 to 60 °C
