HDMI over IP extender transmitter Techly 020508 (P/N IDATA EXTIP-VW) for Cat5e/Cat6/Cat6a/Cat7 UTP and SFTP cables, with RJ45 PoE.

• TV Wall solutions: Works exclusively with Techly 020515 receivers (P/N IDATA EXTIP-VWR), sold separately.

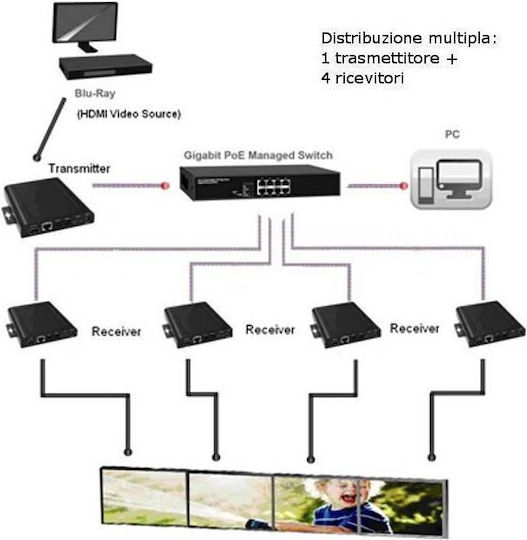

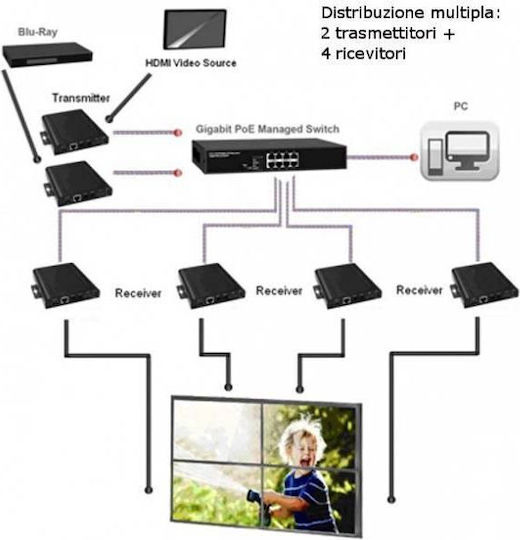

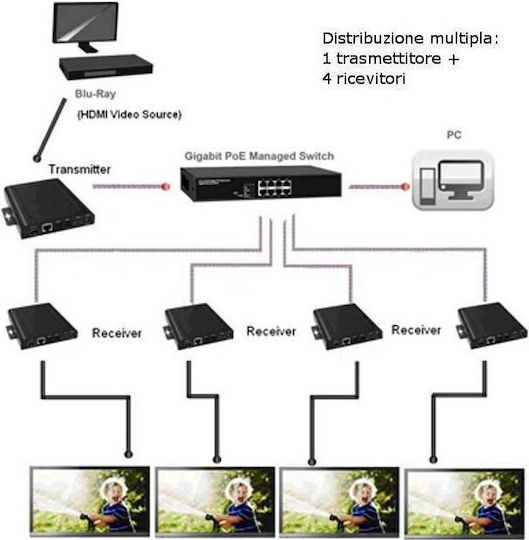

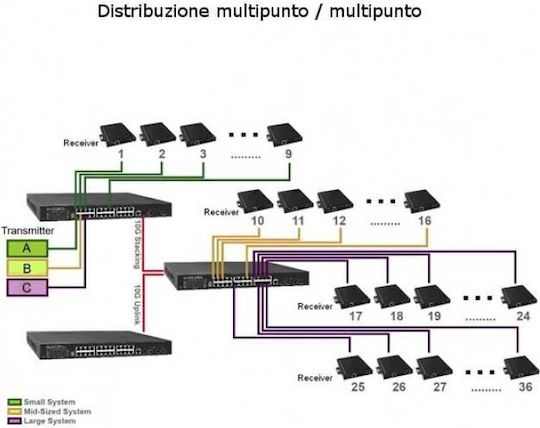

• Configurations: Supports Point-to-Point, Point-to-Multipoint and Multipoint-to-Multipoint, as well as up to 8 transmitters and 128 receivers per system.
• Operating distance: Up to 100 m with Cat5e.
• Signal: HDMI 1.3, HDCP 1.2.
• Input: HDMI 19-pin female.
• Outputs: RJ45 1Gb and SFP 1Gb, RS232 and Debug.
• Resolution: Up to 1080p HDTV (1920x1080 @ 60Hz).
• Power supply: 5V / 2.5A DC, 802.3af PoE.
• Consumption: Up to 8W.
• Humidity: 10 ~ 85% RH (non-condensing).
• Temperature: 0 °C to 50 °C.
• Dimensions: 142 × 107 × 25 mm.
• Weight: 0.859 kg.

Included: HDMI over IP transmitter, power adapter, CD with instructions and Wizard Video Wall User software.

Certifications: EC, FCC.
