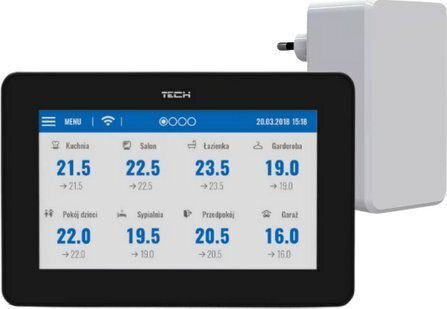

Tech Wired Controller M-9t Bar L-9r Surface Mount Color Screen Black Stm9tbk

The wired Tech M-9 T controller works with the L-9 R wiring centre and controls secondary room thermostats in Series 9 underfloor heating systems. As the main device, it processes heating parameters...

The wired Tech M-9 T controller works with the L-9 R wiring centre and controls secondary room thermostats in Series 9 underfloor heating systems. As the main device, it processes heating parameters for up to 32 zones, sets schedules and target temperatures, and switches zones on or off. The touchscreen includes settings for the date, time, screensaver,...

See full description See full description

Top specs

See all
  • Power 2 W

Learn more about invoicing

Description & Specifications

The wired Tech M-9 T controller works with the L-9 R wiring centre and controls secondary room thermostats in Series 9 underfloor heating systems. As the main device, it processes heating parameters for up to 32 zones, sets schedules and target temperatures, and switches zones on or off. The touchscreen includes settings for the date, time, screensaver, alarm clock, lock, display colours and button sounds.

Remote control via a computer, tablet or smartphone requires an Internet module and DHCP enabled, so the controller can automatically obtain its network settings. Registration with the L-9 R wiring centre is required, and up to 4 wiring centres can be connected in series. The controller is designed for surface mounting.

  • Type: Control panel
  • Compatibility: L-9 R wiring centre and room thermostats in a Series 9 underfloor heating system
  • Maximum number of zones: 32
  • Display: Touchscreen
  • Mounting: Surface-mounted
  • Supply voltage: 7–15 V DC
  • Maximum power consumption: 2 W
  • Operating temperature: 5–50 °C
  • Wireless transmission: IEEE 802.11 b/g/n
  • Network: Automatic acquisition of IP address, subnet mask, gateway and DNS address when the Internet module is enabled and DHCP is selected
  • Maximum number of L-9 R wiring centres: 4

Manufacturer

Dimensions

Type
Control Panel
Compatibility
for Room Thermostat
Construction Material [Pharmaceutical]
-
Smart / WiFi
No

Technical Parameters

Thread / Cross-section
-
Power
2 W
Maximum Pressure
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

709,90 €
14,00 €   shipping cost
