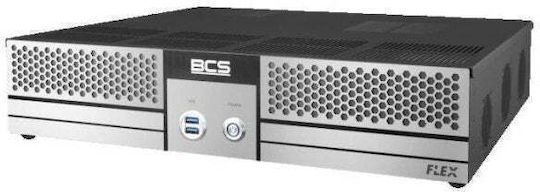

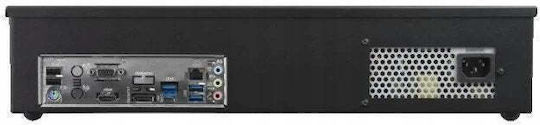

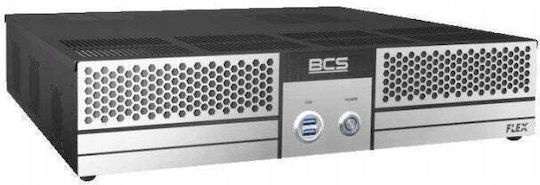

BCS BCS-F-NVR7004 NVR Recorder 70 Channels with 4K Resolution
Surveillance Video Recorders

BCS BCS-F-NVR7004 NVR Recorder 70 Channels with 4K Resolution

70-channel IP recorder BCS-F-NVR7004 is an advanced device for video surveillance, combining high-quality performance with smart analysis functions, providing effective protection and easy access to...

70-channel IP recorder BCS-F-NVR7004 is an advanced device for video surveillance, combining high-quality performance with smart analysis functions, providing effective protection and easy access to recordings.

  • Support for 70 channels from various manufacturers, offering flexibility in adapting the surveillance system.
  • Display of up to 64 channels on one...
See full description See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

  • Video Compression

    H.265

    Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

    • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

    (The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

70-channel IP recorder BCS-F-NVR7004 is an advanced device for video surveillance, combining high-quality performance with smart analysis functions, providing effective protection and easy access to recordings.

  • Support for 70 channels from various manufacturers, offering flexibility in adapting the surveillance system.
  • Display of up to 64 channels on one screen, allowing simultaneous monitoring of multiple locations.
  • Installation of 4 drives with a total capacity of up to 24 TB, ensuring enough space for long-term archiving.
  • Smart video analytics that improve resistance to false alarms.
  • Remote access via the DWService platform and the VNC protocol.
  • E-map module for visualizing channels on an interactive map.

The BCS-F-NVR7004 IP recorder is based on the Linux operating system, providing stability and security. It features a powerful Intel Core processor, which ensures high-quality monitoring and playback.

  • Pentaplex mode for simultaneous monitoring, recording, playback, and archiving.
  • Advanced recording capabilities, including motion and alarm recordings.

Technical specifications:

  • System: IP
  • Type: IP recorder with Intel Core I7 processor
  • Input bandwidth: 2.5Gbps
  • Output bandwidth: 2.5Gbps
  • Video compression: H.265, H.264
  • HDMI output: 4K
  • VGA output: 1920x1080
  • Multimedia: 1, 4, 8, 16, 32, 64, 70
  • Dimensions: 440x385x100 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
70

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, VGA

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265

Video Compression

H.265

Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

  • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

(The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
4

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
24 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

70-channel IP recorder BCS-F-NVR7004 is an advanced device for video surveillance, combining high-quality performance with smart analysis functions, providing effective protection and easy access to recordings.

  • Support for 70 channels from various manufacturers, offering flexibility in adapting the surveillance system.
  • Display of up to 64 channels on one screen, allowing simultaneous monitoring of multiple locations.
  • Installation of 4 drives with a total capacity of up to 24 TB, ensuring enough space for long-term archiving.
  • Smart video analytics that improve resistance to false alarms.
  • Remote access via the DWService platform and the VNC protocol.
  • E-map module for visualizing channels on an interactive map.

The BCS-F-NVR7004 IP recorder is based on the Linux operating system, providing stability and security. It features a powerful Intel Core processor, which ensures high-quality monitoring and playback.

  • Pentaplex mode for simultaneous monitoring, recording, playback, and archiving.
  • Advanced recording capabilities, including motion and alarm recordings.

Technical specifications:

  • System: IP
  • Type: IP recorder with Intel Core I7 processor
  • Input bandwidth: 2.5Gbps
  • Output bandwidth: 2.5Gbps
  • Video compression: H.265, H.264
  • HDMI output: 4K
  • VGA output: 1920x1080
  • Multimedia: 1, 4, 8, 16, 32, 64, 70
  • Dimensions: 440x385x100 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
70

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, VGA

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265

Video Compression

H.265

Advanced codec with approximately 50% better compression than H.264 for the same quality. Ideal for 4K and 8K content, supports HDR and UHD, significantly reducing the required bandwidth.

  • The standard supports approximately 30–35 days of continuous recording on a 2TB hard drive

(The values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene motion, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
4

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
24 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
