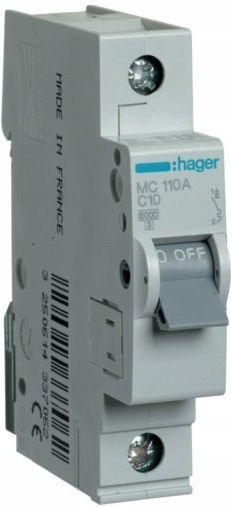

Pole Automatic Overcurrent Circuit Breaker Hager 1p C 10a 6ka Ac Mcn110e
Automatic Circuit Breaker

Pole Automatic Overcurrent Circuit Breaker Hager 1p C 10a 6ka Ac Mcn110e

Automatic switch Hager MCN110E, single-pole, characteristic C, suitable for lighting circuits and sockets, as well as loads with increased starting current, such as motors and transformers. Protects...

Automatic switch Hager MCN110E, single-pole, characteristic C, suitable for lighting circuits and sockets, as well as loads with increased starting current, such as motors and transformers. Protects against overload and short circuit.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 230/400 V
  • Maximum current: 10 A
  • Frequency: 50 Hz
  • Tripping...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Automatic switch Hager MCN110E, single-pole, characteristic C, suitable for lighting circuits and sockets, as well as loads with increased starting current, such as motors and transformers. Protects against overload and short circuit.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 230/400 V
  • Maximum current: 10 A
  • Frequency: 50 Hz
  • Tripping characteristic: C
  • Breaking capacity: 6 kA
  • Protection rating: IP20
  • Number of poles: 1
  • Switching endurance: 4000 cycles
  • Mounting on DIN rail 35 mm
  • Material: plastic
  • Housing: light grey
  • Compliance: EN60898/IEC60898

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
1
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Automatic switch Hager MCN110E, single-pole, characteristic C, suitable for lighting circuits and sockets, as well as loads with increased starting current, such as motors and transformers. Protects against overload and short circuit.

  • Rated current: 10 A
  • Operating voltage: 230 V
  • Rated voltage: 230/400 V
  • Maximum current: 10 A
  • Frequency: 50 Hz
  • Tripping characteristic: C
  • Breaking capacity: 6 kA
  • Protection rating: IP20
  • Number of poles: 1
  • Switching endurance: 4000 cycles
  • Mounting on DIN rail 35 mm
  • Material: plastic
  • Housing: light grey
  • Compliance: EN60898/IEC60898

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
