The Awenta Slimline 4000 window air inlet regulates airflow and is suitable for PVC windows. Its casing is 18 mm thick, while the spring clips make installation quick and easy.

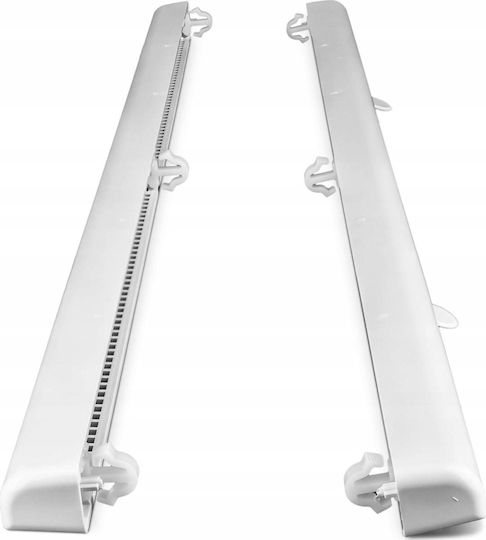

The assembly includes an internal air inlet, mounting clips, an adjustable flap with a handle, an external drip collector and an external grille.
- Type: Pressure-controlled window air inlet
- Suitable for: PVC windows
- Casing thickness: 18 mm

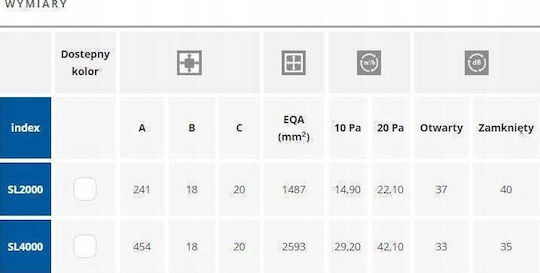

- Effective area (EQA): 2593 mm²
- Airflow at 10 Pa: 29.20 m³/h
- Airflow at 20 Pa: 42.10 m³/h

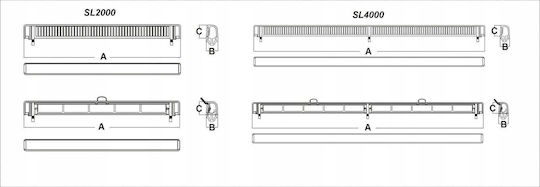

- Dimensions: A: 454 mm, B: 18 mm, C: 20 mm
- Certificate: ISO 9001
Specifications
- Diameter
- 18 mm
Dimensions
- Width
- 18 mm
