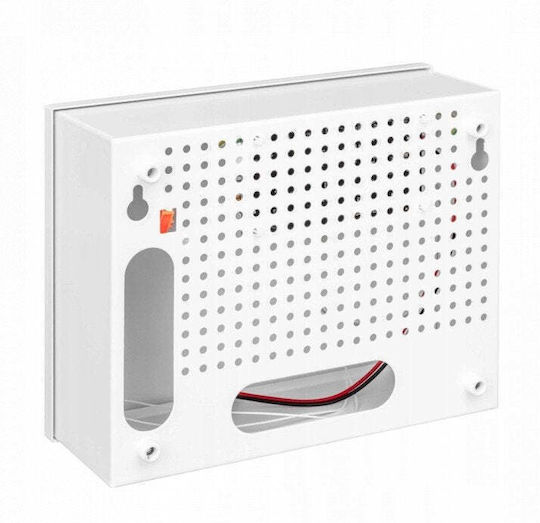

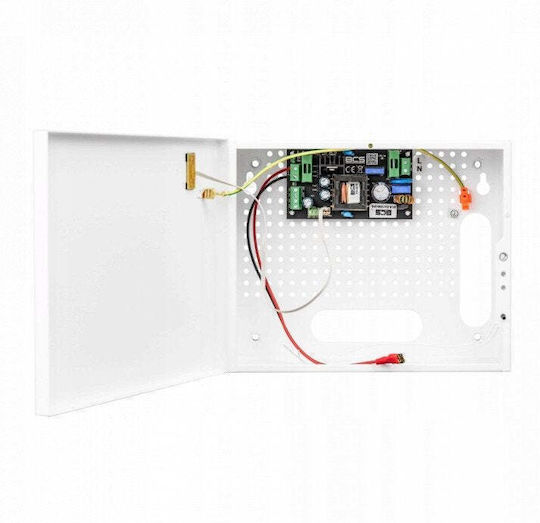

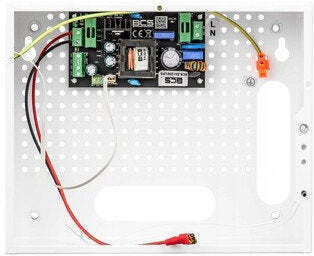

BCS DIN Rail Power Supply UPS with 12V Output and 72W 6A
DIN Rail Power Supplies

BCS DIN Rail Power Supply UPS with 12V Output and 72W 6A

Pulse standby power supply 72W suitable for powering recorders and cameras in analog and IP surveillance systems.

  • Outputs: 2
  • Suitable battery: 12 V / 7 Ah
  • Protections: short circuit, overload,...

Pulse standby power supply 72W suitable for powering recorders and cameras in analog and IP surveillance systems.

  • Outputs: 2
  • Suitable battery: 12 V / 7 Ah
  • Protections: short circuit, overload, overvoltage, battery discharge, and reverse connection
  • Use: indoor
  • Protection rating: IP20

Technical specifications:

  • Brand: BCS
  • Model: BCS-ZA1206/UPS/E
  • Maximum...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Pulse standby power supply 72W suitable for powering recorders and cameras in analog and IP surveillance systems.

  • Outputs: 2
  • Suitable battery: 12 V / 7 Ah
  • Protections: short circuit, overload, overvoltage, battery discharge, and reverse connection
  • Use: indoor
  • Protection rating: IP20

Technical specifications:

  • Brand: BCS
  • Model: BCS-ZA1206/UPS/E
  • Maximum output current: 6.00 A
  • Input voltage: 230 V AC
  • Output voltage: 10 - 13.9 V DC
  • Battery charging current: 1 - 2 A
  • Operating temperature: from -10 °C to +40 °C
  • Enclosure dimensions: 200 × 250 × 85 mm
  • Product weight with packaging: 2.000 kg
  • EAN (GTIN): 5904890706347

Manufacturer

Manufacturer Details

Warnings & Safety Information
Output Voltage
12 V
Power
72 W
Power Intensity
6 A
UPS
Yes

UPS

Provides voltage to the output for a limited period of time in case of power outage.
