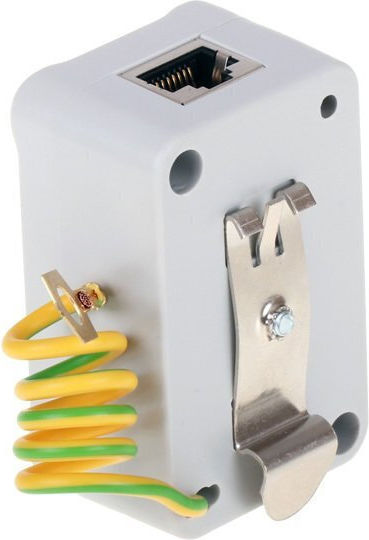

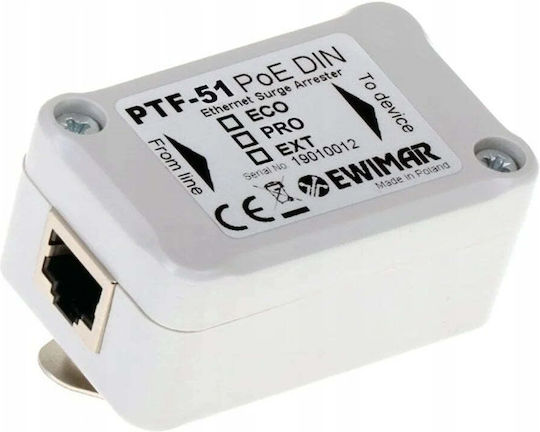

The Ewimar PTF-51-EXT/POE/DIN surge protector mounts on a DIN rail and is designed for LAN networks and IP cameras. It provides three stages of protection for the data line, diverting surge currents to ground. Its built-in PoE circuits limit voltage increases between the transmission pairs. Proper grounding via the PE line is required.

• Type: Surge protection
• Quantity: 1
• Channels: 1
• Connectors: RJ-45 input and output
• Protection stages: 3 (GDT, MOSFET, TVS)
• Nominal DC line-to-ground voltage: 90 V DC
• Maximum continuous voltage: 110 V DC
• Discharge current: 2 kA per conductor, 14 kA total (8/20 µs)
• Compatibility: 10Base-T and 100Base-T Ethernet, Category 5, 5e and 6 cabling
• Enclosure protection rating: IP40
• Dimensions: 65 x 30 x 40 mm
• Operating temperature: -30 °C to 60 °C
