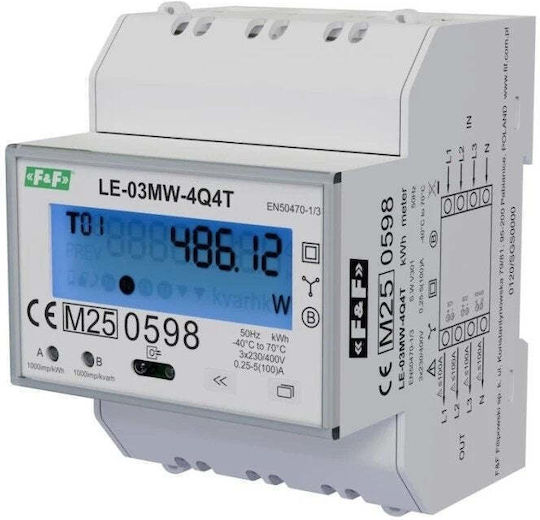

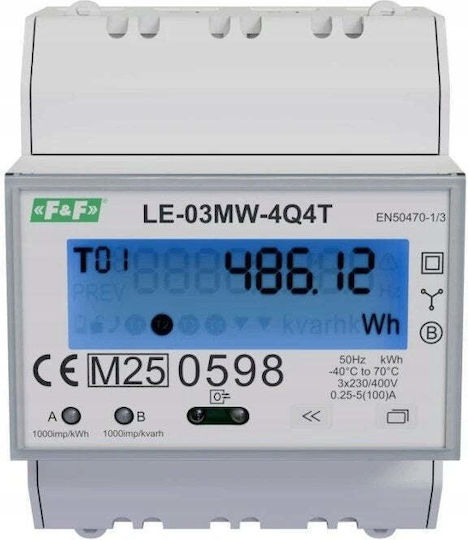

Energy Meter F&f Le-03mw-4q4t Three-Phase Bidirectional 4 Quadrant 3×230/400 V Ac 50hz Ip20

The F&F LE-03MW-4Q4T energy meter is suitable for measuring in three-phase installations. It supports bidirectional measurement of active and reactive energy in 4 quadrants, as well as monitoring of...

The F&F LE-03MW-4Q4T energy meter is suitable for measuring in three-phase installations. It supports bidirectional measurement of active and reactive energy in 4 quadrants, as well as monitoring of energy consumed and fed into the grid.

  • Built-in RTC: With backup battery for automatic switching of tariff zones.
  • Communication: RS-485 with Modbus RTU for...
See full description See full description

Top specs

See all
  • Connectivity Modbus
230 31 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (118)

Learn more about invoicing

Description & Specifications

The F&F LE-03MW-4Q4T energy meter is suitable for measuring in three-phase installations. It supports bidirectional measurement of active and reactive energy in 4 quadrants, as well as monitoring of energy consumed and fed into the grid.

  • Built-in RTC: With backup battery for automatic switching of tariff zones.
  • Communication: RS-485 with Modbus RTU for remote data reading and integration into energy management systems.
  • Display: Backlit LCD with LED indicator.
  • Enclosure: Made of self-extinguishing materials.
  • Protection rating: IP20.

Technical characteristics:

  • Model: LE-03MW-4Q4T
  • Type: Three-phase electricity meter
  • Measurement: Direct
  • Measuring system: 3-phase, 4-wire
  • Rated voltage: 3 × 230/400 V AC
  • Voltage measurement range L-N: 176–276 V AC
  • Basic current: 5 A
  • Maximum current: 3 × 100 A
  • Minimum current: 0.25 A
  • Minimum detection current: 0.02 A
  • Rated frequency: 50 Hz

Manufacturer

Specifications

Type
Energy Analyzer
Display Type
Digital
Number of Phases
Three-phase
Maximum Current
5 A

Smart Features

Connectivity
Modbus

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
