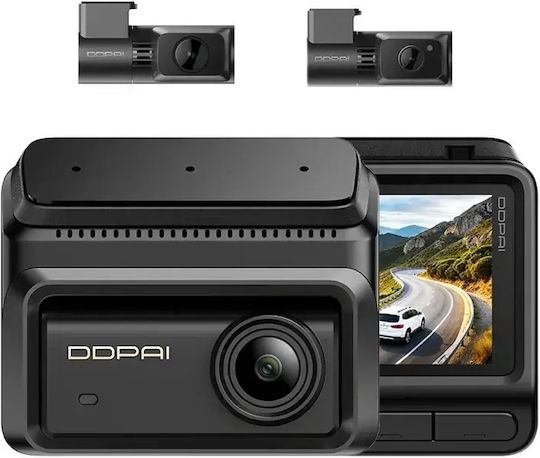

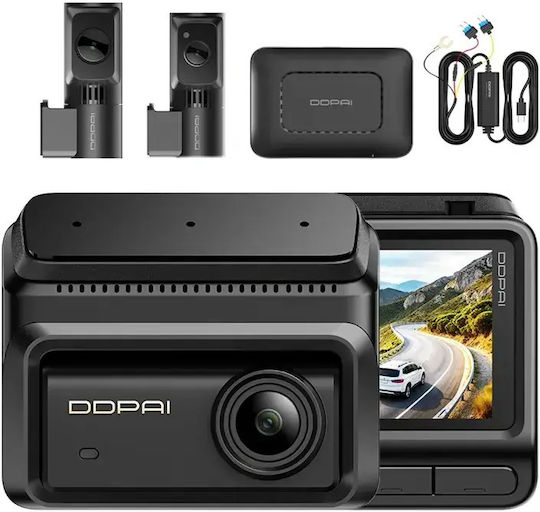

The DDPAI Z90T car DVR camera set simultaneously records the road ahead, the rear of the vehicle, and its interior. The front camera records at 4K resolution at 30 fps, while Triple HDR helps capture detail in scenes with high-contrast lighting. The 3-inch screen provides access to the device interface.
Parking monitoring and the 3-axis G-sensor support event recording while the vehicle is parked. The device features voice control with the “Take Photo” command, while the microphone records audio and the speaker plays audio messages.
- Installation: On the windshield
- Mounting: Adhesive tape
- Cameras: Front, rear, and interior
- Front camera resolution: 3840 x 2160 at 30 fps or 2560 x 1440 at 60 fps
- Rear camera resolution: 2560 x 1440 at 25 fps
- Interior camera resolution: 2560 x 1440 at 25 fps
- Front camera field of view: 143°
- Rear camera field of view: 126°
- Interior camera field of view: 123°
- Front camera aperture: F1.8
- Rear camera aperture: F2.0
- Interior camera aperture: F1.55
- HDR: Triple HDR
- Video encoding: AI.265, H.264
- Video format: MP4
- Screen: 3 inches, 640 x 360 resolution
- Night recording: Yes
- Parking mode: Yes
- ADAS: Yes
- G-sensor: 3-axis
- Connectivity: 4G, 5 GHz Wi-Fi 6 Turbo, Bluetooth BLE 5.1
- Positioning systems: GPS, BDS, GLONASS, GALILEO, QZSS
- App control: Yes
- Voice control: “Take Photo” command
- Storage: microSD card up to 512 GB
- Microphone: Yes
- Speaker: Yes
- Supercapacitor: Yes
- Power port: USB-C
- Operating temperature: From -20 °C to 70 °C
- Storage temperature: From -40 °C to 85 °C
- Main unit dimensions: 83 x 57.5 x 46.3 mm
- Main unit weight: 196 g
- Product Number
- 093888
Dimensions
- Placement
- on Windshield
- Mounting Type
- with Adhesive Tape
- with Rear Camera
- Yes
Screen
- with Screen
- Yes
- Screen Dimension
- 3 "
Video
- Video Resolution
- 4K
- Night Vision
- Yes
- FPS
- 30
Technical Specifications
- Connectivity
- Wi-Fi, Bluetooth, GPS
- Card Support
- microSD
Functions
- Parking Mode
- Yes
- ADAS
- Yes
- Motion Detection
- No
- G‑Sensor
- Yes
