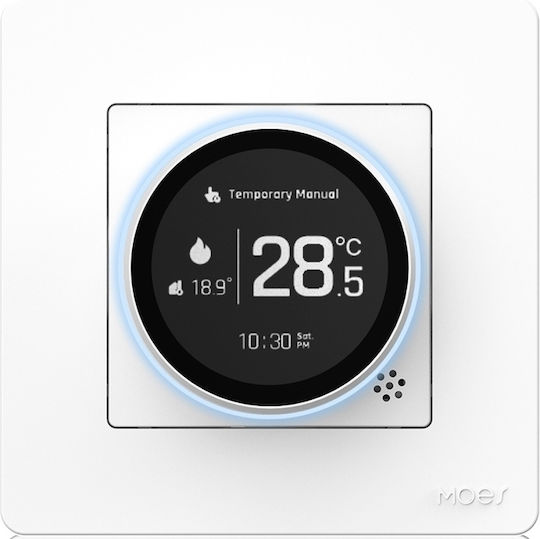

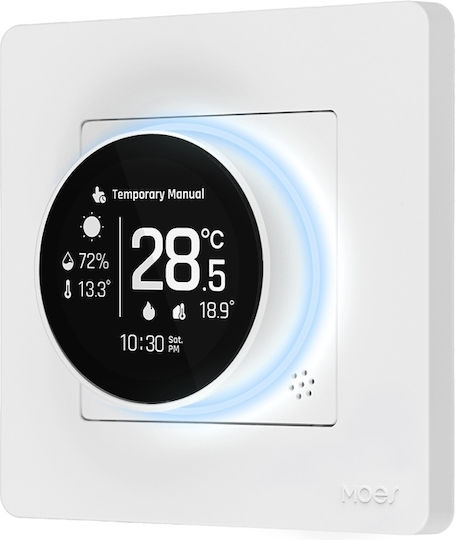

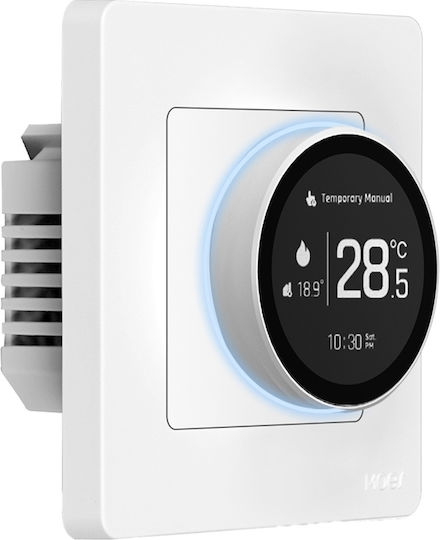

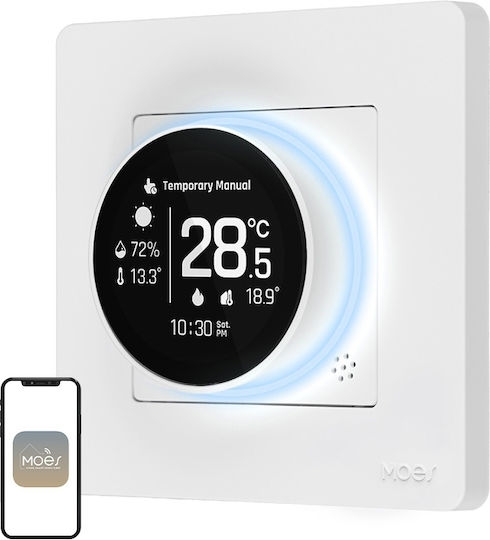

ZigBee MOES ZHT-SR-GB Thermostat for Electric Heating

The MOES Smart Star Series ZHT-SR-GB thermostat is designed for controlling electric heating, combining precise temperature adjustment with convenient remote operation. It supports a temperature range from 5 to 35 °C with an accuracy of ±1 °C.

Thanks to the 95–240 VAC power supply and compatibility with loads up to 16 A, it is suitable for electrical installations. The backlit switch and easy-to-read interface make operation simple, while ZigBee connectivity (gateway required) allows integration into a smart home system.

Precise Temperature Control and Stable Operation

• Uses an NTC3950 (10K) sensor for accurate temperature measurement.
• Operating temperature range: 5 to 70 °C.
• Stable operation in ambient temperatures from 0 to 45 °C.
• Humidity: 5–95% RH (non-condensing).

Smart Control and App Integration

The thermostat supports the MOES, Tuya Smart, and Smart Life apps, allowing full control via smartphone. Users can adjust settings remotely, monitor temperature, and create automations tailored to their daily routines.

Voice Control and Easy Operation

The ZHT-SR-GB model is compatible with Amazon Alexa and Google Assistant, allowing temperature control with voice commands. It also features touch controls and an intuitive dial, making quick adjustments simple.

Weekly Scheduling and Safety Features

The thermostat offers 5+1+1 programming, allowing up to 6 time periods per day to optimize energy consumption. The lock function protects settings from accidental changes.

Durable Construction and Easy Installation

The casing is made of durable PC + ABS material, and the IP20 protection rating is suitable for standard home environments. It is compatible with 86 × 86 mm installation boxes or 60 mm European round boxes.

Manufacturer: Moes

Model: ZHT-SR-GB

Voltage / Frequency: 95 ~ 245 V AC, 50/60 Hz

Load: 16 A

Communication Method: ZigBee 3.0

Single Model: ZT3L

Maximum RF Power: +20 dBm

Operating Frequency: 2.405 ~ 2.480 GHz

ZigBee Standard: IEEE 802.15.4

Sensor: NTC3950, 10K

Accuracy: ±1°C

Set Temperature Range: 5 ~ 35°C

Displayed Temperature Range: 5 ~ 99°C

Storage Temperature: 0 ~ 45°C
