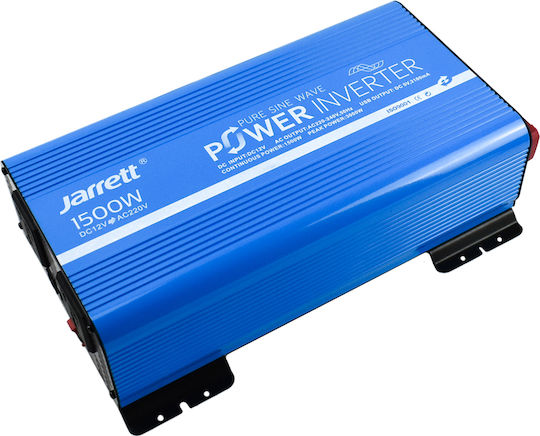

Pure sine wave inverter with intelligent cooling fan and USB output. Includes safety functions to prevent overvoltage, undervoltage, overload, high temperature, and output short-circuit protection.

• Rated input voltage: DC 13V (@12V Inverter)
• Operating voltage range: DC 11V-15V (@12V Inverter)
• No-load output voltage: AC 230V +/- 10V (@ Rated input voltage)
• Load output voltage: AC 210V~ AC 240V (@ Rated input voltage)
• Output frequency: 50Hz+/-0.5Hz
• USB Output: DC 5V, 2100mA or other Type-C: 18W Max.
• Continuous power: 1500W
• Peak power: 3000W
• Output Wave: Pure sine wave
• Max Efficiency: ≥85%
• 12V Input: ≤1.3A
• 24V Input: ≤0.7A
• Input Low-Voltage Alarm: DC 10.5V +/-0.3V (@12V Inverter)
• Input Low-Voltage Shut Down: DC 9.5V +/-0.3V (@12V Inverter)
• Low-Voltage Recovery Voltage: 12V Inverter: When the input voltage rises to 12V +/- 0.3V, the inverter will automatically resume operation.
• Input Over Voltage Shut Down: DC 16V +/-0.3V (@12V Inverter)
• Over-voltage Recovery Voltage: 12V Inverter: When the input voltage drops to 14V +/-0.3V, the inverter will automatically resume operation.
• Over-load protection: Yes (1550-1800W)
• Overload Recovery: Reduce the load to the rated power. Restart the inverter to resume operation or wait 1-3 minutes for automatic recovery.
• Over Temperature protection: Yes
• Over Temperature Recovery: When the temperature inside the inverter drops to the set point, the inverter will automatically start operating.
• Output Short Circuit protection: Yes
• Short Circuit Recovery: After restoration, restart the inverter manually to resume operation.
• Reverse protection: Reverse connection will blow the fuse. Replacing the fuse with the same specifications can repair the inverter. Reverse connection will cause irreparable damage to the inverter!
• The Best Working Temperature: -15°C ~ 25°C
• Fuse (@12V Inverter): 40A*4
• Fuse (@24V Inverter): 25A*4
• Cooling method: By Fan (temperature controlled)
• Remote control: Optional, RJ12 port
• Dimensions: 370 x 215 x 100mm
