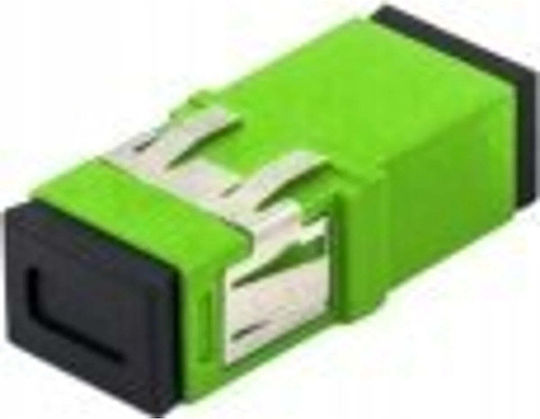

The ALANTEC SM SC/APC simplex flange-less single-mode optical adapter is used for connecting pairs of optical fibers with terminated connectors. The SC connectors feature a simple locking connection and rectangular shape, allowing efficient placement on panels. It is used in optical fiber distributors and subscriber outlets.
- Type: SingleMode
- Transmission: simplex
- Type: APC
- Connector type: SM APC 8º
- Insertion loss IL: 0.15 dB
- Repeatability IL: ±0.1 dB
- Durability: over 1000 cycles
- Operating temperature: from -40 to +85 ºC
- Ferrule diameter: 2.5 mm
- Gender A-B
- Male - Female
- Colour
- -
