Non-pressed connections can be quickly detected during the filling of the installation. The SC-Contur is certified and meets the requirements of the DVGW W 534 standard, point 12.14, for fittings with mandatory leakage. In a water tightness test, the Viega system guarantees the detection of non-pressed connections at pressures from 1.0 bar to 6.5 bar, and with compressed air or inert gases from 22 mbar to 3.0 bar.

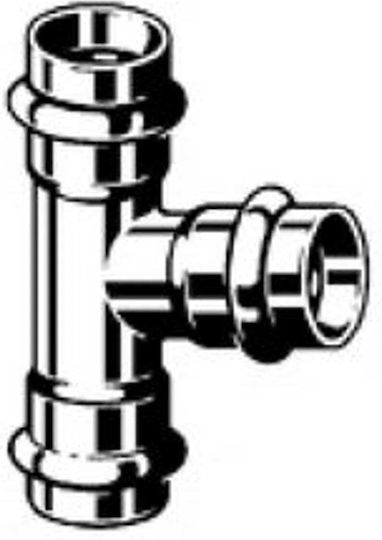

• Material: stainless steel
• Connection: pressed
• Provided with: EPDM sealing elements
• Size: 54x54x54mm
• VDS Approval: Yes
• Applications: drinking water, rainwater, compressed air installations, agriculture, industry
• Special applications: shipbuilding, fire protection installations
• Operating temperature: T = 85°C, Tmax = 110°C
• Operating pressure: pmax ≤ 16 bar

Use in other applications requires consultation with the Viega Service Center via a material request. System components must be protected from high concentrations of chlorides, both from the medium and external sources. Drinking water without restrictions according to the TrinkwV regulation. Mixed material installations are allowed regardless of the flow direction.
