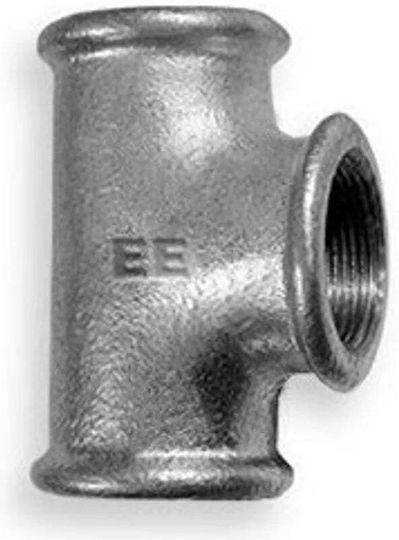

Straight Tee Odlewnia Zawiercie 1/2" Galvanized

Straight tee made of ductile cast iron for threaded pipe connections, especially in water supply, gas, steam, central heating, and fire-fighting networks, for the transportation of non-aggressive...

Straight tee made of ductile cast iron for threaded pipe connections, especially in water supply, gas, steam, central heating, and fire-fighting networks, for the transportation of non-aggressive liquids and gases.

Manufactured according to PN-EN 10242 and ISO 49, with the manufacturing symbol “A”.

  • Material: White ductile cast iron EN-GJMW-400-5 according...
See full description See full description

Learn more about invoicing

Description

Description

Straight tee made of ductile cast iron for threaded pipe connections, especially in water supply, gas, steam, central heating, and fire-fighting networks, for the transportation of non-aggressive liquids and gases.

Manufactured according to PN-EN 10242 and ISO 49, with the manufacturing symbol “A”.

  • Material: White ductile cast iron EN-GJMW-400-5 according to EN 1562, equivalent to W 400-05 according to ISO 5922
  • Tensile strength: min. 400 MPa
  • Elongation: min. 5%
  • Hardness: max. 200 HB
  • Size: 1/2 inch
  • Dimension a: 28 mm
  • Dimension b: 28 mm

The mechanical properties are tested on specimens with a diameter of 12mm.

Manufacturer

See full description

Specifications

Specifications

Size
1/2"
Type
Pneumatic Fitting
Material
Galvanized
Multilayer Pipe
No
America
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Straight tee made of ductile cast iron for threaded pipe connections, especially in water supply, gas, steam, central heating, and fire-fighting networks, for the transportation of non-aggressive liquids and gases.

Manufactured according to PN-EN 10242 and ISO 49, with the manufacturing symbol “A”.

  • Material: White ductile cast iron EN-GJMW-400-5 according to EN 1562, equivalent to W 400-05 according to ISO 5922
  • Tensile strength: min. 400 MPa
  • Elongation: min. 5%
  • Hardness: max. 200 HB
  • Size: 1/2 inch
  • Dimension a: 28 mm
  • Dimension b: 28 mm

The mechanical properties are tested on specimens with a diameter of 12mm.
