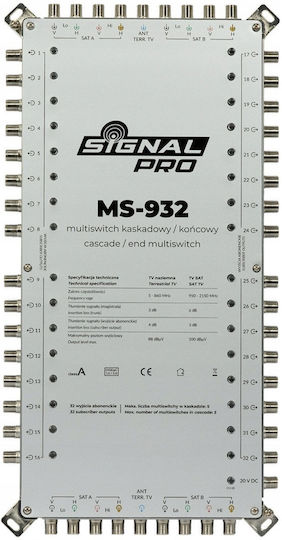

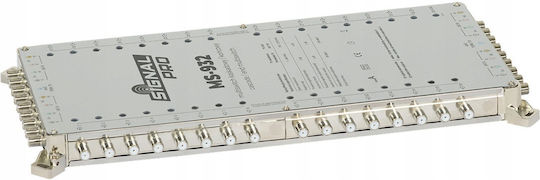

The MULTISWITCH MS-932 allows the connection of 9 signal sources and their distribution to 32 outputs.

It supports frequencies from 5 MHz to 2150 MHz and DiSEqC 1.0 and 2.0 standards.

• Inputs: 8 x 950 MHz … 2150 MHz, 1 x 5 MHz … 860 MHz
• Outputs: 32 x 47 MHz … 2150 MHz
• Switching signals: 13 V / 18 V, 0 Hz / 22 kHz
• SAT branch attenuation: 3 dB
• TV branch attenuation: 4 dB
• Losses: 6 dB – SAT, 3 dB – RTV
• Maximum SAT output level: 100 dBµV
• Maximum TV output level: 88 dBµV
• Isolation between SAT/SAT inputs: > 25 dB
• Output isolation: 25 dB – RTV, 28 dB – SAT
• Dimensions: 425 × 230 × 70 mm
• Weight: 2,066 kg

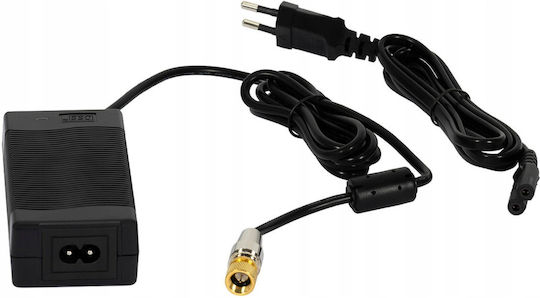

• Pre-amplifier power supply: 20V DC / 2.5 A (power adapter included in package)
• Power consumption: 200 mA
