Laserliner Quadrum Compact G 210S Self-Leveling Rotary Laser Level Green Beam 7.4V
Laser Levels

Laserliner Quadrum Compact G 210S Self-Leveling Rotary Laser Level Green Beam 7.4V

Key features:

  • High visibility green laser
  • Fully automatic sensor system
  • Detection range up to 200 meters
  • Durable IP66 protection

Achieve absolute precision in horizontal and vertical alignments with Laserliner’s advanced green laser technology.

See full description

Top specs

  • Laser Color

    Green

    Ideal for outdoor use.

  • Self-leveling

    It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.

  • Protection Certification

    IP66

    Complete protection against dust and powerful water jets from any direction.

  • Wavelength

    515

    Low to medium visibility, suitable for short distances.
  • See all
1114 76 €
Delivery Thu, 01 Oct - Wed, 07 Oct
14,00 €   shipping cost
Sent from Greece
From Lasertek
Greece
5 pieces
See Levels / Angle Meters on the page of Lasertek

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

  • High-visibility green laser: Excellent clarity and beam visibility in any work environment.
  • Fully automatic sensor system: Automatic leveling with time-saving and high accuracy.

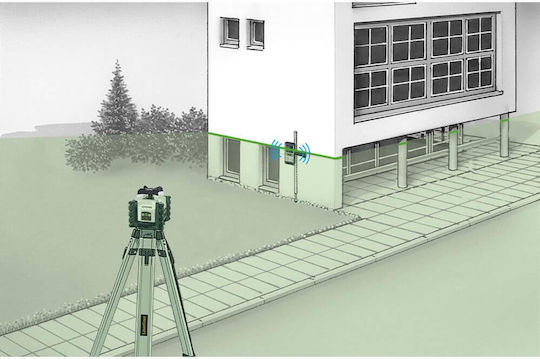

  • Range up to 200 meters: Large operating radius combined with the SensoLite G 210 receiver.

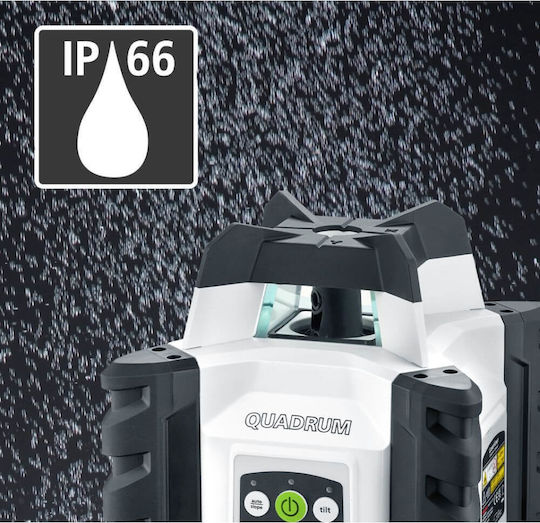

  • Durable IP66 protection: Complete resistance to dust and powerful water jets.

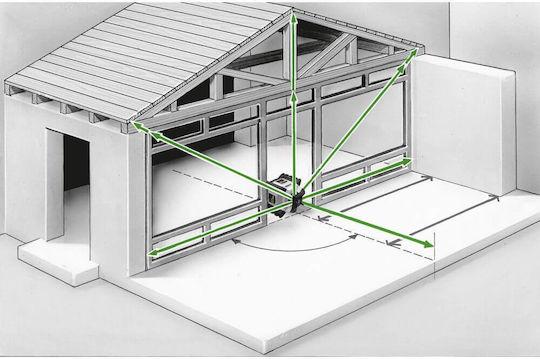

Precision and Automatic Alignment

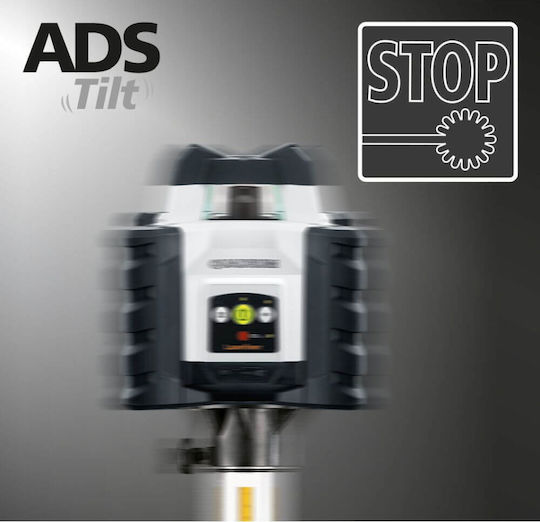

You ensure top accuracy of ± 0.15 mm/m in your measurements thanks to fully automatic alignment via a special sensor. Green laser technology offers excellent visibility, while the ADS system automatically switches off the device in the event of movement. At the same time, with the integrated 5/8″ thread, you can easily mount the device for vertical leveling.

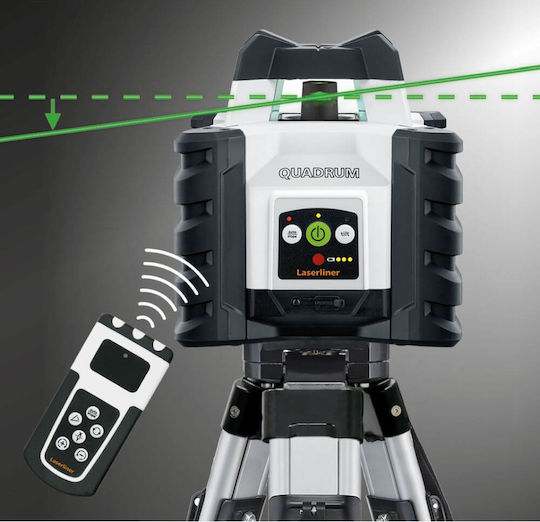

Complete Control and Great Autonomy

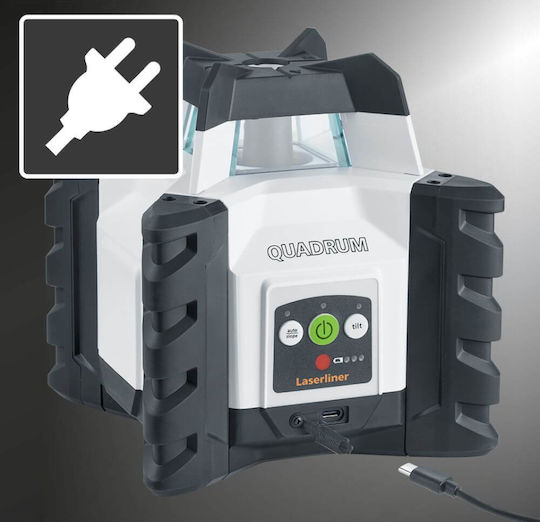

You can control all functions from a distance of up to 40 meters with the practical remote control included in the package. The two HighCapacityPack Li-Ion batteries provide up to 20 hours of continuous operation, while you also have the option to charge them simultaneously while you work, avoiding any unwanted interruptions on the job site.

Complete Equipment for Every Job

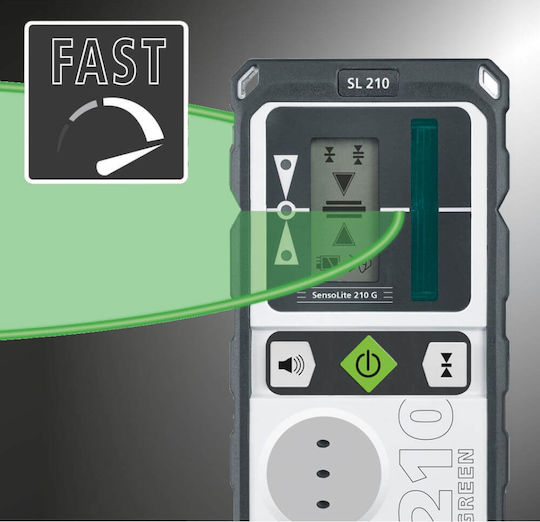

You enjoy a complete leveling package that includes the lightweight 165cm aluminum tripod and the LT 4m leveling rod. The SensoLite G 210 receiver allows you to work at long distances of up to 200m, while the durable IP66 housing and special motor brake protect the instrument during transport.

Specifications

  • Model: Quadrum Compact G 210S Set 165cm
  • Product code: 053.610A
  • Accuracy: ± 0.15 mm/m
  • Self-leveling range: ± 4°
  • Laser wavelength: 515 nm
  • Laser class: 2 / < 1 mW
  • Receiving range: Up to 200 m
  • Protection class: IP 66
  • Power supply: Li-ion battery 7.4V / 2.6Ah / 19.24Wh
  • Operating time: Approximately 20 hours
  • Charging time: Approximately 4 hours
  • Dimensions: 170 x 188 x 170 mm
  • Weight: 1575 g (with batteries)

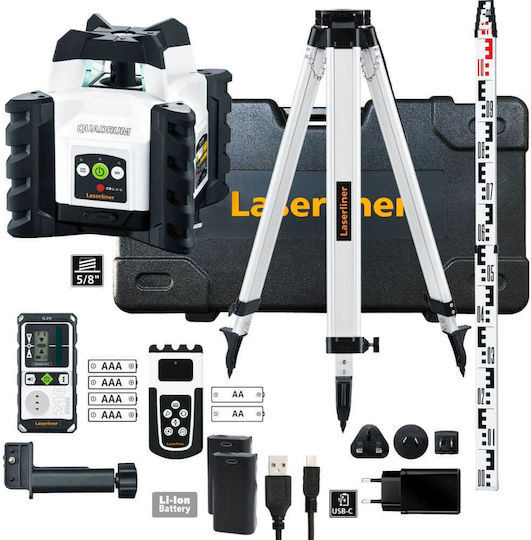

Package Contents

  • 1x Quadrum Compact G Rotary Laser
  • 1x SensoLite G 210 Receiver
  • 1x Lightweight tripod 165 cm
  • 1x Universal mount
  • 1x LT telescopic leveling staff 4 m
  • 1x Remote control
  • 2x HighCapacityPack batteries (Li-Ion)
  • 1x Power supply/mains charger with international adapter
  • 1x USB-A to USB-C cable
  • 1x Carrying case

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Rotary

Type

Rotary
Projects a rotating dot to create a 360-degree line.
Colour of Laser
Green

Colour of Laser

Green

Ideal for outdoor use.
Self-Leveling
Yes

Self-Leveling

It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.

Beam Specifications

Wavelength
515 nm

Wavelength: 515


Low to medium visibility, suitable for short distances.

Additional Features

Protection Certification
IP66

Protection Certification

IP66
Complete protection against dust and powerful water jets from any direction.
Pulsed
No

Pulsed

The laser beam is not continuous, but is emitted in very fast pulses (which are usually not visible to the naked eye). The receiver "detects" the pulsed signal even when the line is not visible (a useful feature for professional use with a receiver and in outdoor environments).
Tripod Mount Type
5/8"

Power Specifications

Required Number of Batteries
2
Battery Capacity
2.6 Ah

Accessories

Tripod
Yes
Glasses
No
Mount / Bracket
Yes
Target
No
Receiver
No
Remote Control
Yes
Case
Yes
Tripod Base
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • High-visibility green laser: Excellent clarity and beam visibility in any work environment.
  • Fully automatic sensor system: Automatic leveling with time-saving and high accuracy.
  • Range up to 200 meters: Large operating radius combined with the SensoLite G 210 receiver.
  • Durable IP66 protection: Complete resistance to dust and powerful water jets.

Precision and Automatic Alignment

You ensure top accuracy of ± 0.15 mm/m in your measurements thanks to fully automatic alignment via a special sensor. Green laser technology offers excellent visibility, while the ADS system automatically switches off the device in the event of movement. At the same time, with the integrated 5/8″ thread, you can easily mount the device for vertical leveling.

Complete Control and Great Autonomy

You can control all functions from a distance of up to 40 meters with the practical remote control included in the package. The two HighCapacityPack Li-Ion batteries provide up to 20 hours of continuous operation, while you also have the option to charge them simultaneously while you work, avoiding any unwanted interruptions on the job site.

Complete Equipment for Every Job

You enjoy a complete leveling package that includes the lightweight 165cm aluminum tripod and the LT 4m leveling rod. The SensoLite G 210 receiver allows you to work at long distances of up to 200m, while the durable IP66 housing and special motor brake protect the instrument during transport.

Specifications

  • Model: Quadrum Compact G 210S Set 165cm
  • Product code: 053.610A
  • Accuracy: ± 0.15 mm/m
  • Self-leveling range: ± 4°
  • Laser wavelength: 515 nm
  • Laser class: 2 / < 1 mW
  • Receiving range: Up to 200 m
  • Protection class: IP 66
  • Power supply: Li-ion battery 7.4V / 2.6Ah / 19.24Wh
  • Operating time: Approximately 20 hours
  • Charging time: Approximately 4 hours
  • Dimensions: 170 x 188 x 170 mm
  • Weight: 1575 g (with batteries)

Package Contents

  • 1x Quadrum Compact G Rotary Laser
  • 1x SensoLite G 210 Receiver
  • 1x Lightweight tripod 165 cm
  • 1x Universal mount
  • 1x LT telescopic leveling staff 4 m
  • 1x Remote control
  • 2x HighCapacityPack batteries (Li-Ion)
  • 1x Power supply/mains charger with international adapter
  • 1x USB-A to USB-C cable
  • 1x Carrying case

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Rotary

Type

Rotary
Projects a rotating dot to create a 360-degree line.
Colour of Laser
Green

Colour of Laser

Green

Ideal for outdoor use.
Self-Leveling
Yes

Self-Leveling

It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.

Beam Specifications

Wavelength
515 nm

Wavelength: 515


Low to medium visibility, suitable for short distances.

Additional Features

Protection Certification
IP66

Protection Certification

IP66
Complete protection against dust and powerful water jets from any direction.
Pulsed
No

Pulsed

The laser beam is not continuous, but is emitted in very fast pulses (which are usually not visible to the naked eye). The receiver "detects" the pulsed signal even when the line is not visible (a useful feature for professional use with a receiver and in outdoor environments).
Tripod Mount Type
5/8"

Power Specifications

Required Number of Batteries
2
Battery Capacity
2.6 Ah

Accessories

Tripod
Yes
Glasses
No
Mount / Bracket
Yes
Target
No
Receiver
No
Remote Control
Yes
Case
Yes
Tripod Base
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
