Laserliner Duraplane Plus G360 Set 175cm Self-Leveling Rotary Laser Level Green Beam 7.4V with Working Range 70m
Laser Levels

Laserliner Duraplane Plus G360 Set 175cm Self-Leveling Rotary Laser Level Green Beam 7.4V with Working Range 70m

Key features:

  • Green laser 360°
  • Two vertical lines
  • Anti-Drift-System protection
  • RangeXtender M70 receiver

Achieve precision in indoor and outdoor applications with the advanced green beam of the Laserliner Duraplane Plus G360.

See full description

Top specs

  • Laser Color

    Green

    Ideal for outdoor use.

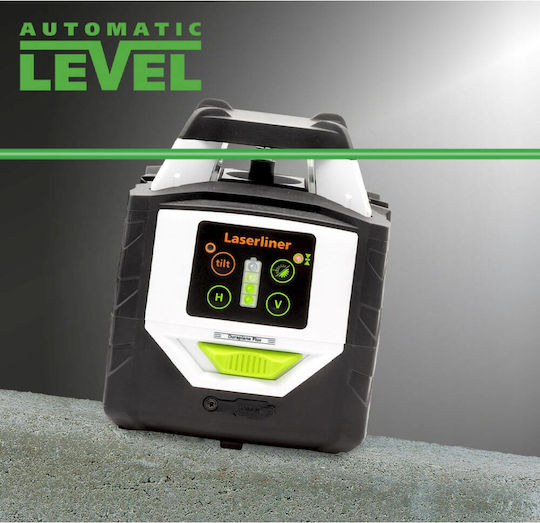

  • Self-leveling

    It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.
  • Working Range 70 m

  • Protection Certification

    IP54

    Protection against limited dust ingress (without affecting operation) and against water.

  • Wavelength

    515

    Low to medium visibility, suitable for short distances.

  • Measurement Accuracy

    It expresses the maximum deviation of the beam from the actual alignment at a specific distance. The smaller this value, the more accurate the tool is.
  • See all
680 76 €
Delivery Thu, 01 Oct - Wed, 07 Oct
14,00 €   shipping cost
Sent from Greece
From Lasertek
Greece
5 pieces
See Levels / Angle Meters on the page of Lasertek

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

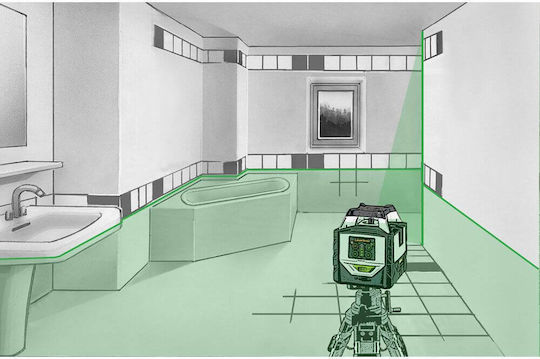

  • Green laser circle 360°: Accurate and quick horizontal alignment throughout the entire space.

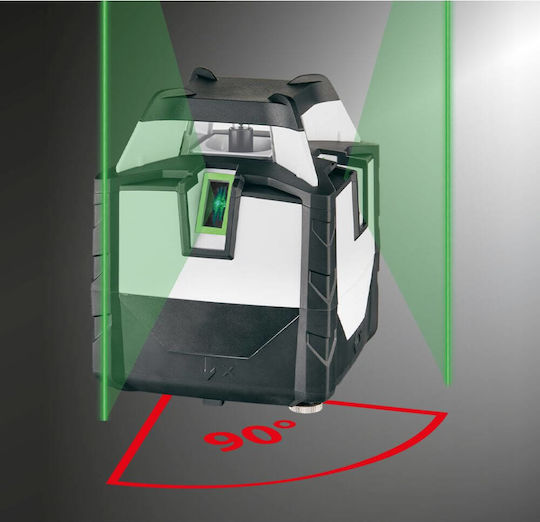

  • Two vertical laser lines: Ability to select separately for full vertical positioning.
  • Anti-Drift-System Protection: Effectively prevents errors caused by unintentional movements.
  • RangeXtender M70 Receiver: Precise height difference reading with digital millimeter indication.

Precision in Every Application

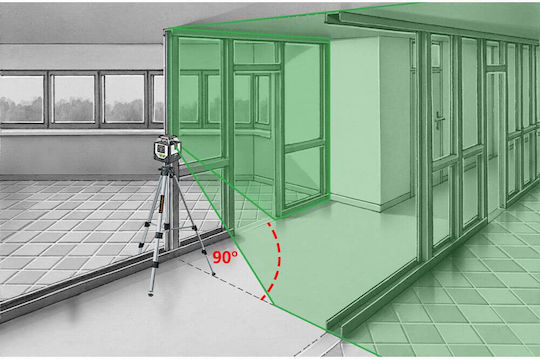

Ensure excellent visibility with the bright green beam at a wavelength of 515 nm. The 360° horizontal circle and the two vertical lines allow you to align everything with an accuracy of ± 0.2 mm/m, while the upper laser cross provides quick leveling.

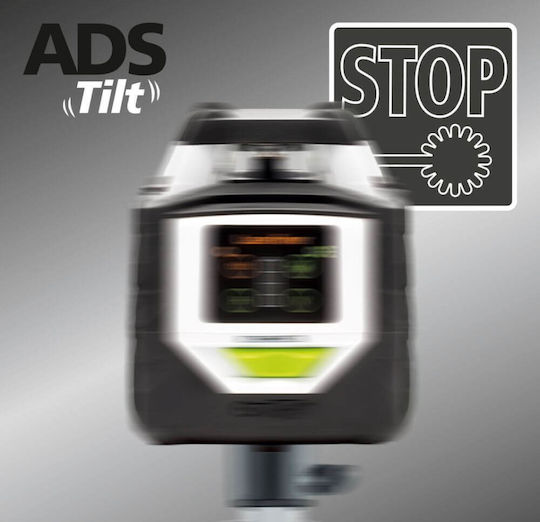

Anti-Drift Protection and Flexibility

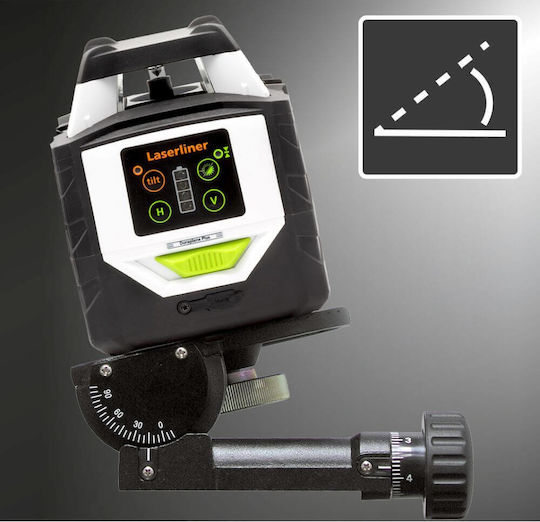

Work without worry about potential errors with the built-in Anti-Drift-System that alerts you to any unwanted movement. The manual tilt function allows you to set inclined planes, meeting every requirement on the construction site.

Functionality and Durability

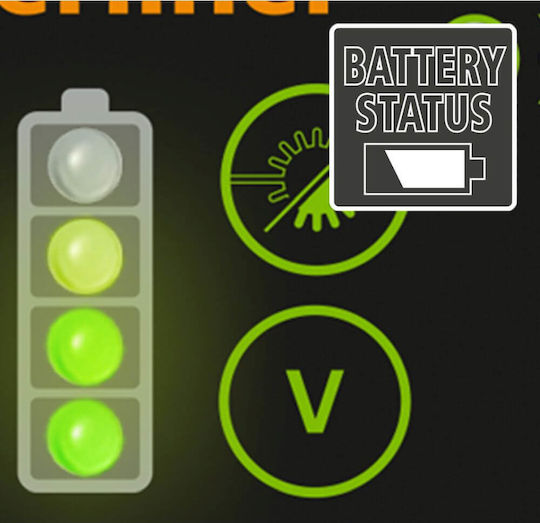

Rely on two HighCapacityPack Li-Ion rechargeable batteries that offer up to 9 hours of operation, with the ability to use while charging. The IP 54 protection shields the device from dust and splashes for safe operation.

Complete Set for Outdoor Spaces

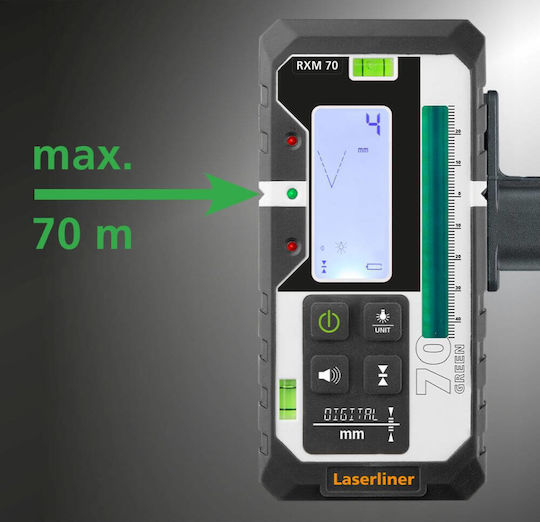

You enjoy an increased range of up to 70 meters thanks to the RangeXtender M70 receiver with millimeter indication. The set includes a compact 175 cm tripod and a 3 m telescopic staff for immediate and comprehensive use in any outdoor construction.

Specifications

  • Model: Duraplane Plus G360 Set 175 cm
  • Product code: 052.600A
  • Accuracy: ± 0.2 mm/m
  • Self-leveling range: ± 2.5°
  • Laser wavelength: 515 nm
  • Laser class: 2 / < 1 mW
  • Receiving range: Up to 70 m
  • Protection class: IP 54
  • Power supply: Li-ion battery 7.4V / 2.6Ah / 19.24Wh
  • Operating time: Approximately 9 hours
  • Charging time: Approximately 4 hours
  • Dimensions: 122 x 152 x 124 mm
  • Weight: 884 g (with battery)

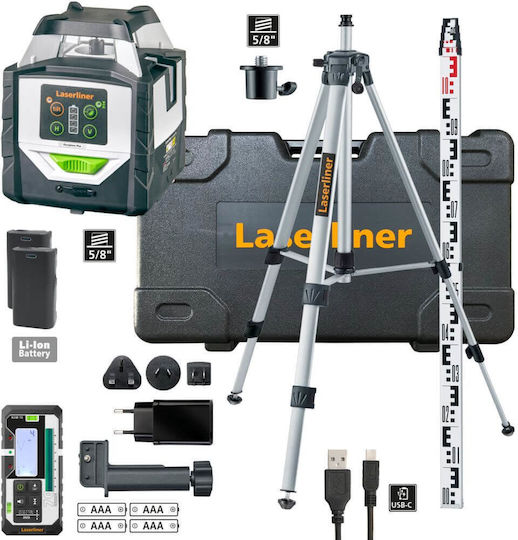

Package Contents

  • 1x Rotating Laser Duraplane Plus G360
  • 1x RangeXtender M 70 Receiver
  • 1x Compact tripod 175 cm
  • 1x Telescopic grade rod 3 m
  • 1x Thread adapter 5/8″
  • 2x HighCapacityPack Batteries (Li-Ion)
  • 1x Power supply/charger with international adapter
  • 1x USB-C Cable
  • 1x Carrying case

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Rotary

Type

Rotary
Projects a rotating dot to create a 360-degree line.
Colour of Laser
Green

Colour of Laser

Green

Ideal for outdoor use.
Self-Leveling
Yes

Self-Leveling

It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.

Beam Specifications

Wavelength
515 nm

Wavelength: 515


Low to medium visibility, suitable for short distances.
Working Range
70 m
Measurement Accuracy
±0.2mm/m

Measurement Accuracy

It expresses the maximum deviation of the beam from the actual alignment at a specific distance. The smaller this value, the more accurate the tool is.

Additional Features

Protection Certification
IP54

Protection Certification

IP54

Protection against limited dust ingress (without affecting operation) and against water.
Pulsed
No

Pulsed

The laser beam is not continuous, but is emitted in very fast pulses (which are usually not visible to the naked eye). The receiver "detects" the pulsed signal even when the line is not visible (a useful feature for professional use with a receiver and in outdoor environments).
Tripod Mount Type
5/8"

Power Specifications

Battery Capacity
2.6 Ah

Accessories

Tripod
Yes
Glasses
No
Mount / Bracket
No
Target
No
Receiver
No
Remote Control
No
Case
Yes
Tripod Base
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
