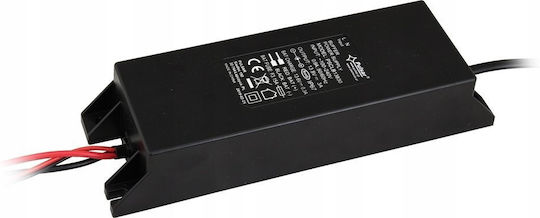

The backup switching power supply Pulsar PSCLB13830 provides a stabilized voltage for continuous operation of connected devices. The enclosure has an IP67 protection rating and is suitable for use indoors and outdoors.

• Output: 11–13.8V DC (backup operation), 9–13.8V DC (battery operation)
• Output current: 2A + 0.3A battery charging
• Power supply: 90–264V AC, 50Hz
• Maximum consumption: 0.4A@230VAC
• Maximum power: 45W
• Output voltage adjustment: 12–14V DC
• Voltage ripple: 100mV p-p max.
• Battery charging current: 0.3A max.
• Circuit consumption: 50mA/13.8V DC
• Protections: SCP, OLP, varistor and protection against excessive battery discharge
• Efficiency: 85%
• Operating conditions: -10°C to 40°C, relative humidity 20–90% (non-condensing)
• Dimensions: 178 x 56 x 34 mm
• Protection class: PN-EN 60950-12007 II
• DC cable length: 0.5 m
• Power cable length: 0.4 m
