BCS CCTV System Power Supply
CCTV Accessories

BCS CCTV System Power Supply

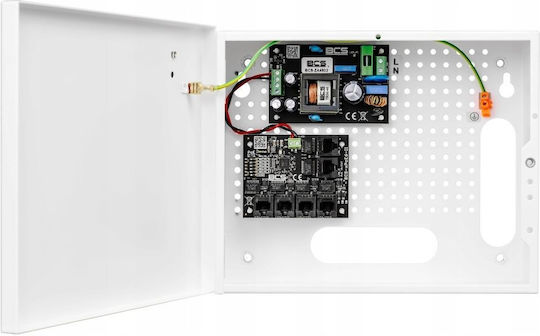

The BCS-IP4/E-S is a power supply and PoE switch set for IP surveillance systems. It includes:

  • Power supply BCS-ZA4802
  • Switch BCS-xPoE6, for powering 48VDC IP cameras and data transmission

Features:...

The BCS-IP4/E-S is a power supply and PoE switch set for IP surveillance systems. It includes:

  • Power supply BCS-ZA4802
  • Switch BCS-xPoE6, for powering 48VDC IP cameras and data transmission

Features:

  • 6 LAN ports, 10/100Mbps with auto-negotiation
  • Power supply: 180-240V AC, 50-60 Hz
  • Output: 48V
  • Power: 96W continuous
  • Current: 2A
  • Typical efficiency: over 90%
  • ...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The BCS-IP4/E-S is a power supply and PoE switch set for IP surveillance systems. It includes:

  • Power supply BCS-ZA4802
  • Switch BCS-xPoE6, for powering 48VDC IP cameras and data transmission

Features:

  • 6 LAN ports, 10/100Mbps with auto-negotiation
  • Power supply: 180-240V AC, 50-60 Hz
  • Output: 48V
  • Power: 96W continuous
  • Current: 2A
  • Typical efficiency: over 90%
  • Protection against short circuit, overload, and overheating
  • Switch power supply: 10-56 DC
  • PoE output: Uwy PoE = Uwe (10-56V DC)
  • Operating temperature: -10°C to 40°C
  • Indoor enclosure IP21: 250x200x85 mm
  • Board dimensions: 85 x 69 x 19 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Power Supply

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The BCS-IP4/E-S is a power supply and PoE switch set for IP surveillance systems. It includes:

  • Power supply BCS-ZA4802
  • Switch BCS-xPoE6, for powering 48VDC IP cameras and data transmission

Features:

  • 6 LAN ports, 10/100Mbps with auto-negotiation
  • Power supply: 180-240V AC, 50-60 Hz
  • Output: 48V
  • Power: 96W continuous
  • Current: 2A
  • Typical efficiency: over 90%
  • Protection against short circuit, overload, and overheating
  • Switch power supply: 10-56 DC
  • PoE output: Uwy PoE = Uwe (10-56V DC)
  • Operating temperature: -10°C to 40°C
  • Indoor enclosure IP21: 250x200x85 mm
  • Board dimensions: 85 x 69 x 19 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Power Supply

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

313,90 €
14,00 €   shipping cost
