Pulsar Wall Mounted Waterproof Electrical Fuse Box P600xH800xW300mm
Fuse Box

Pulsar Wall Mounted Waterproof Electrical Fuse Box P600xH800xW300mm

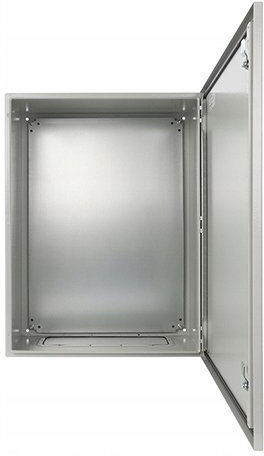

The waterproof metal enclosure Pulsar AWOH608030 is designed for wall-mounted installation and equipment protection in industrial applications. It is suitable for CCTV systems, access control,...

The waterproof metal enclosure Pulsar AWOH608030 is designed for wall-mounted installation and equipment protection in industrial applications. It is suitable for CCTV systems, access control, electrical and telecommunications installations.

The construction made of cold-rolled SPCC steel features embossed epoxy-polyester coating in RAL7035 (gray). The door...

See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The waterproof metal enclosure Pulsar AWOH608030 is designed for wall-mounted installation and equipment protection in industrial applications. It is suitable for CCTV systems, access control, electrical and telecommunications installations.

The construction made of cold-rolled SPCC steel features embossed epoxy-polyester coating in RAL7035 (gray). The door can open to the left or right.

  • Manufacturer: Pulsar K. Bogusz Sp.j.
  • Type: empty, waterproof enclosure
  • Material: metal, cold-rolled SPCC steel
  • External dimensions: 600 x 800 x 300 mm (+/- 2 mm)
  • Mounting plate dimensions: 550 x 765 mm (+/- 2 mm)
  • Body sheet thickness: 1.2 mm
  • Mounting plate sheet thickness: 1.5 mm
  • Ingress protection rating: IP66
  • Mechanical resistance class: IK10
  • Lock installation option: AWOH-K1 (repeating code)
  • Lock cover installation option: AWOH-Z1
  • Optional accessories: mounting brackets AWOH-US60 and cable glands AWOH-PM25D

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Placement
Wall mounted
Material
Metallic
Colour
Grey
Protection Certification
IP66

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
600 mm
Height
800 mm
Installation Depth
300 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The waterproof metal enclosure Pulsar AWOH608030 is designed for wall-mounted installation and equipment protection in industrial applications. It is suitable for CCTV systems, access control, electrical and telecommunications installations.

The construction made of cold-rolled SPCC steel features embossed epoxy-polyester coating in RAL7035 (gray). The door can open to the left or right.

  • Manufacturer: Pulsar K. Bogusz Sp.j.
  • Type: empty, waterproof enclosure
  • Material: metal, cold-rolled SPCC steel
  • External dimensions: 600 x 800 x 300 mm (+/- 2 mm)
  • Mounting plate dimensions: 550 x 765 mm (+/- 2 mm)
  • Body sheet thickness: 1.2 mm
  • Mounting plate sheet thickness: 1.5 mm
  • Ingress protection rating: IP66
  • Mechanical resistance class: IK10
  • Lock installation option: AWOH-K1 (repeating code)
  • Lock cover installation option: AWOH-Z1
  • Optional accessories: mounting brackets AWOH-US60 and cable glands AWOH-PM25D

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Wall mounted
Material
Metallic
Colour
Grey
Protection Certification
IP66

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
600 mm
Height
800 mm
Installation Depth
300 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

349,90 €
86,00 €   shipping cost
