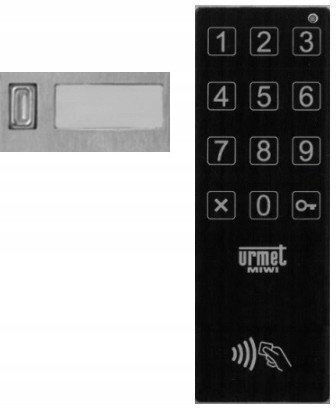

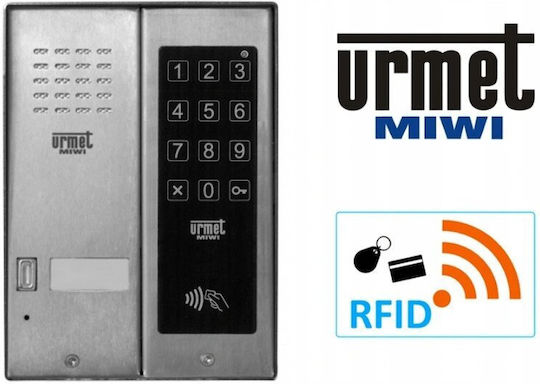

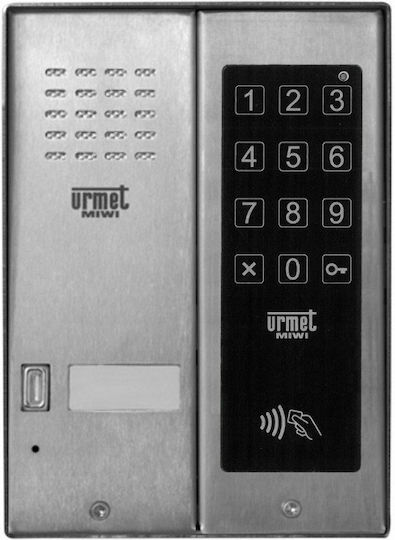

The MIWI-URMET door-entry panel features one call button, a built-in RFID reader and a touch keypad for entering codes. The reader supports UNIQUE 125 kHz key fobs and cards, while the keypad accepts 4- to 8-digit codes. The brightness is adjustable and the audio signals are configurable.
- System: 4+n
- Connection: Wired
- Call buttons: 1
- Identification: RFID
- Supported media: UNIQUE 125 kHz key fobs and cards
- Code length: 4 to 8 digits
- Power supply: 12 VAC
- Relay contact current: 2 A
- Relay contact voltage: 60 VDC / 125 VAC
- Operating temperature: -20 °C to +45 °C

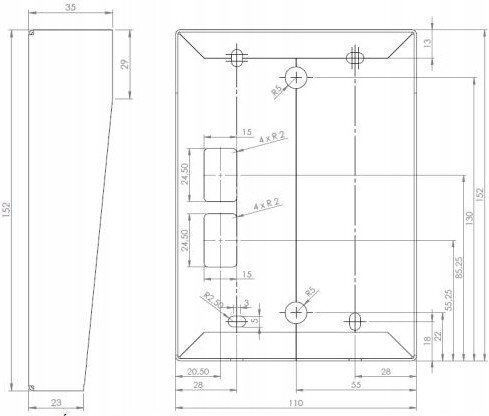

- Dimensions: 152 x 110 x 23–35 mm
- Dimensions with 525/RP2 frame: 175 x 135 x 23.6 mm
- Material: Stainless steel
- Mounting: Surface-mounted or flush-mounted
- Protection rating: IK 07
- with Camera
- No
