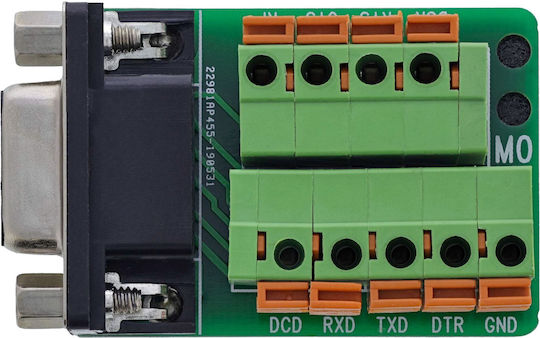

InLine Terminalblock D-Sub 9 Connector with spring terminal and screw locking for industrial applications.

• Quick installation without soldering.
• The screw locking provides stability in vibration conditions.
• Compact dimensions for installation on DIN rails and in limited spaces.

Model: 92501A

Type: D-Sub 9, spring terminal

Connection range: 14–22 AWG

Maximum operating voltage: 100 V between two signals

Rated current: 0.8 A per pin

Insulation resistance: ≥ 10 MΩ at 300 V DC

Operating temperature: –10°C to +70°C

Dimensions: 51 x 31 x 18 mm (L x W x H)

Weight: 23 g

Insulation: EVA

Certifications: RoHS, TÜV

Country of origin: Taiwan
