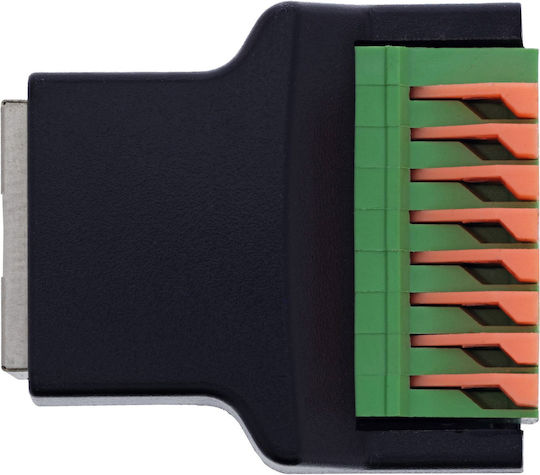

RJ45 8P8C socket with Push-In system and spring technology for tool-free conductor connection. The compact design is suitable for control panels, embedded systems, machine networks, and laboratories.

• Manufacturer: InLine
• Model: 92505E
• Type: RJ45 8P8C, straight, shielded
• Connection system: Push-In
• Pins: 8 signals (11 connection)
• Connection range: 18–26 AWG, solid conductors or stranded with ferrule
• Release: with flat screwdriver ≤ 2.5 mm
• Rated current: 1.0 A per pin
• Maximum operating voltage: 100 V between two signals
• Insulation resistance: ≥ 10 MΩ at 300 V DC
• Operating temperature: –10 °C to +70 °C
• Insulation: EVA on the bottom
• Dimensions: approx. 43 × 33 × 20 mm (H × W × D)
• Net weight: 0.014 kg
• Country of origin: Taiwan
• Certifications: RoHS, TÜV mark
