InLine Stand 1 Piece
Misc Network Accessories

InLine Stand 1 Piece

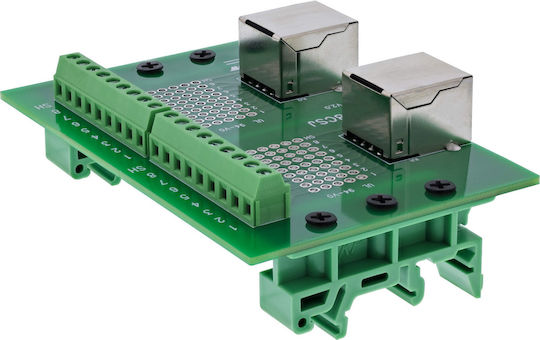

InLine terminal block with two straight RJ45 sockets (2 8P8C), designed for mounting on a DIN rail.

  • Terminals: 2 9, 8 signals and shielding per socket
  • Pre-installed clip: DIN rail
  • Model: 92505C
  • ...

InLine terminal block with two straight RJ45 sockets (2 8P8C), designed for mounting on a DIN rail.

  • Terminals: 2 9, 8 signals and shielding per socket
  • Pre-installed clip: DIN rail
  • Model: 92505C
  • Terminal pitch: 5.0 mm
  • Connection range: 16–26 AWG
  • Maximum operating voltage: 100 V between two signals
  • Maximum rated current: 1.0 A per pin
  • Insulation resistance: ...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

InLine terminal block with two straight RJ45 sockets (2× 8P8C), designed for mounting on a DIN rail.

  • Terminals: 2× 9, 8 signals and shielding per socket
  • Pre-installed clip: DIN rail
  • Model: 92505C
  • Terminal pitch: 5.0 mm
  • Connection range: 16–26 AWG
  • Maximum operating voltage: 100 V between two signals
  • Maximum rated current: 1.0 A per pin
  • Insulation resistance: ≥ 10 MΩ at 300 V DC
  • Operating temperature: –20 °C to +70 °C
  • Insulation: EVA at the base
  • Dimensions: approx. 60.45 × 89.7 × 43.0 mm (W × H × D)
  • Weight: 36 g
  • Certifications: RoHS, TÜV mark
  • Country of origin: Taiwan

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Stand
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

InLine terminal block with two straight RJ45 sockets (2× 8P8C), designed for mounting on a DIN rail.

  • Terminals: 2× 9, 8 signals and shielding per socket
  • Pre-installed clip: DIN rail
  • Model: 92505C
  • Terminal pitch: 5.0 mm
  • Connection range: 16–26 AWG
  • Maximum operating voltage: 100 V between two signals
  • Maximum rated current: 1.0 A per pin
  • Insulation resistance: ≥ 10 MΩ at 300 V DC
  • Operating temperature: –20 °C to +70 °C
  • Insulation: EVA at the base
  • Dimensions: approx. 60.45 × 89.7 × 43.0 mm (W × H × D)
  • Weight: 36 g
  • Certifications: RoHS, TÜV mark
  • Country of origin: Taiwan

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Stand
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

37,90 €
14,00 €   shipping cost
