InLine Microelectronics Accessories

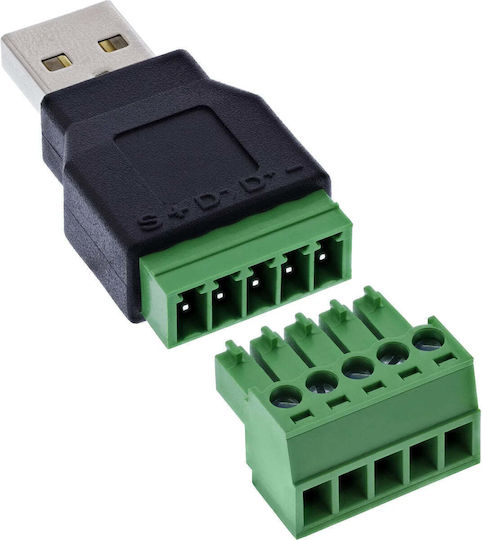

Male InLine USB-A 2.0 plug to 5-pin terminal block, cable-free, suitable for signal connection without soldering. Includes the following key details:

  • Connection type: USB-A 2.0
  • Number of pins: 5
  • Pin...

Male InLine USB-A 2.0 plug to 5-pin terminal block, cable-free, suitable for signal connection without soldering. Includes the following key details:

  • Connection type: USB-A 2.0
  • Number of pins: 5

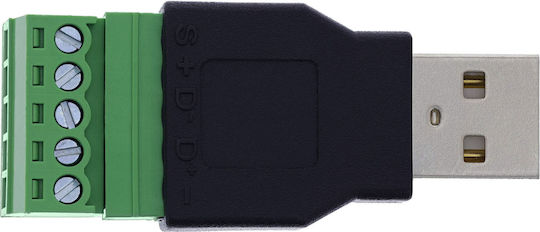

  • Pin assignment: 1 –, 2 D+, 3 D–, 4 +, 5 S
  • Connection technology: screw connection with pressure plate
  • Connection pitch: 5.0 mm
  • Cable range: 16–26 AWG
  • USB operating...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Male InLine USB-A 2.0 plug to 5-pin terminal block, cable-free, suitable for signal connection without soldering. Includes the following key details:

  • Connection type: USB-A 2.0
  • Number of pins: 5
  • Pin assignment: 1 –, 2 D+, 3 D–, 4 +, 5 S
  • Connection technology: screw connection with pressure plate
  • Connection pitch: 5.0 mm
  • Cable range: 16–26 AWG
  • USB operating voltage (VBUS): 5 V DC
  • Nominal current: 0.7 A per pin
  • Test voltage: 300 V AC / 1 minute
  • Insulation resistance: ≥ 10 MΩ at 300 V DC
  • Operating temperature: –20 °C to +105 °C
  • Insulation: EVA on bottom
  • Dimensions: approx. 50 × 21 × 14 mm (L × W × H)
  • Weight: 11 g
  • Certifications: RoHS, TÜV
  • Package quantity: 1 pc.
  • Package dimensions: 70 mm width, 135 mm depth
  • Country of origin: Taiwan

Manufacturer

Manufacturer Details

Warnings & Safety Information
Packaging
1 pcs
Operating Voltage
-
Ecosystem
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

9,90 €
