Sonoff Single-phase Electric Panel Meter Wi-Fi, Zigbee Apple HomeKit, Alexa, Matter, Sonoff

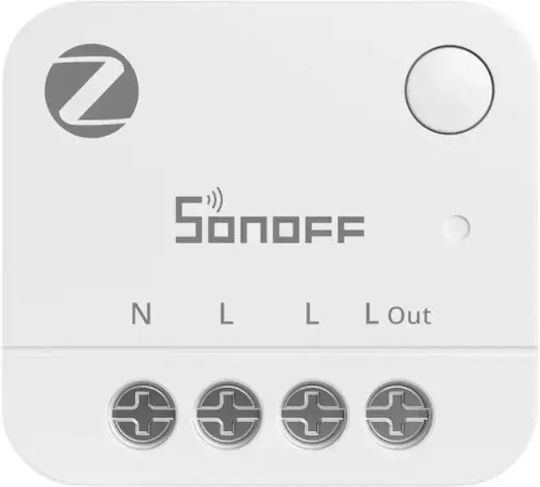

The Sonoff MINI-ZB1GP measuring instrument records voltage, current, instantaneous power, and energy consumption in a single-phase circuit. Bidirectional measurement separately records energy drawn...

The Sonoff MINI-ZB1GP measuring instrument records voltage, current, instantaneous power, and energy consumption in a single-phase circuit. Bidirectional measurement separately records energy drawn from the grid and energy fed back into it, allowing you to monitor the output of photovoltaic installations as well. It communicates via Zigbee 3.0 and operates...

See full description See full description

Top specs

See all
  • Connectivity Wi-Fi, Zigbee
  • Smart Ecosystem Apple HomeKit, Alexa, Matter, Sonoff
16 79 €
Delivery by Mon, 23 Nov
14,00 €   shipping cost
Sent from Greece
From Top Electronics 4.9 (38)

Learn more about invoicing

Reviews (1)

Reviews

  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The Sonoff MINI-ZB1GP measuring instrument records voltage, current, instantaneous power, and energy consumption in a single-phase circuit. Bidirectional measurement separately records energy drawn from the grid and energy fed back into it, allowing you to monitor the output of photovoltaic installations as well. It communicates via Zigbee 3.0 and operates as a router in the Zigbee network, forwarding data from other devices; Turbo Mode can increase the communication range.

With a compatible SONOFF gateway, measurement data, history, and reports are available through eWeLink, with options to export data and calculate costs based on a fixed or time-of-use tariff. You can also set thresholds for overcurrent, overload, overvoltage, and undervoltage, as well as configure alerts and measurement-based automations. It does not have a cutoff relay, so it cannot interrupt power to the connected circuit.

  • Measurement type: Single-phase
  • Communication: Zigbee 3.0
  • Measured parameters: Voltage, current, instantaneous power, and energy
  • Bidirectional energy measurement: Separate recording of incoming and outgoing energy
  • Voltage range: 100–240 V
  • Current range: 0–16 A
  • Maximum current: 16 A
  • Power range: 0–3840 W
  • Energy reports: Hourly, daily, and monthly
  • Energy history: Up to 180 days via eWeLink
  • Data export: Available for consumption and production data
  • Cost calculation: Based on a fixed or time-of-use tariff
  • Adjustable thresholds: Overcurrent, overload, overvoltage, and undervoltage
  • Zigbee router function: Forwards data from other devices on the network
  • Turbo Mode: Increased Zigbee transmission power
  • Compatibility: eWeLink, Home Assistant via Zigbee2MQTT or ZHA, SmartThings, Alexa with a compatible built-in Zigbee hub, Google Home via eWeLink, and Matter via a compatible SONOFF bridge

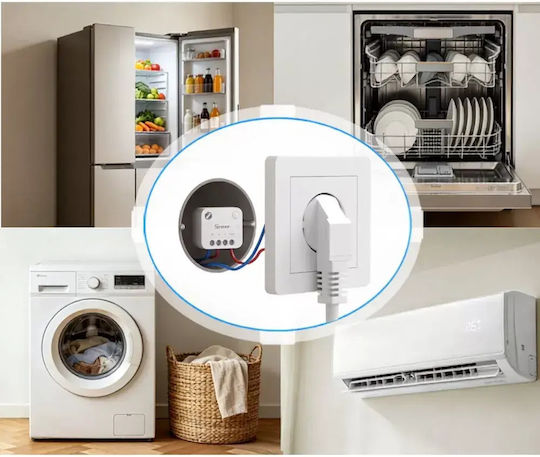

  • Installation: Indoor, concealed
  • Power supply: 100–240 V AC, 50/60 Hz

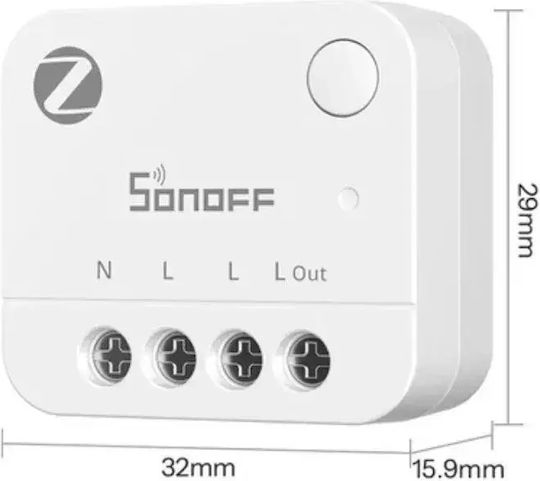

  • Dimensions: 32 × 29 × 15.9 mm
  • Weight: 14 g
  • Housing material: PC
  • Color: White
  • Conductor cross-section: 0.75–2.5 mm², solid or stranded copper
  • Operating temperature: -10 °C to +40 °C
  • Operating humidity: 10–90% RH, non-condensing
  • Certifications: CE, RoHS, FCC

Manufacturer

Specifications

Number of Phases
Single-phase
Maximum Current
16 A

Smart Features

Connectivity
Wi-Fi, Zigbee
Smart Ecosystem
Apple HomeKit, Alexa, Matter, Sonoff
