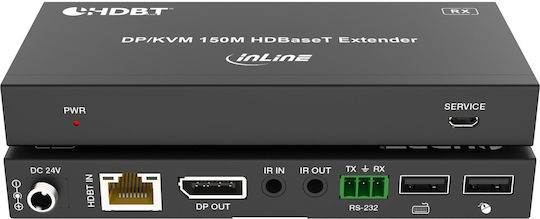

The InLine® KVM Extender provides remote control via keyboard and mouse, transmitting DisplayPort signals over HDBaseT. It supports transmission distances of up to 150 m in Full HD and up to 100 m in 4K@60Hz with Cat.6 cable, as well as IR and RS-232 signals. It is suitable for fixed AV and IT installations in dry environments.

• Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
• Color depth: 8 bit, 10 bit or 12 bit
• Audio: LPCM 2.0 / 5.1 / 7.1, Dolby Digital Plus, DTS-HD Master Audio
• Connections: 1 × DisplayPort, 1 × HDBaseT (RJ45), 3.5 mm IR input/output, RS-232, USB-B, USB service, DC 24 V power
• Operating temperature: 0 °C to +40 °C
• Storage temperature: −20 °C to +60 °C
• Humidity: 20–80 %, non-condensing
• Power supply: AC 100–240 V / 50–60 Hz, DC 24.0 V / 1.0 A
• Weight: 0.964 kg
• Package dimensions: 0.075 m × 0.245 m × 0.186 m
• Model: 57885N
